Hi-lights Online Store » ADJ 40 Hex IP Panel

8 in stock

Price (inc VAT)	£1,299.00

MPN:	1226100438

Size:

0.42m x 0.29m x 0.21m (LxWxH)

Weight:

11.15 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

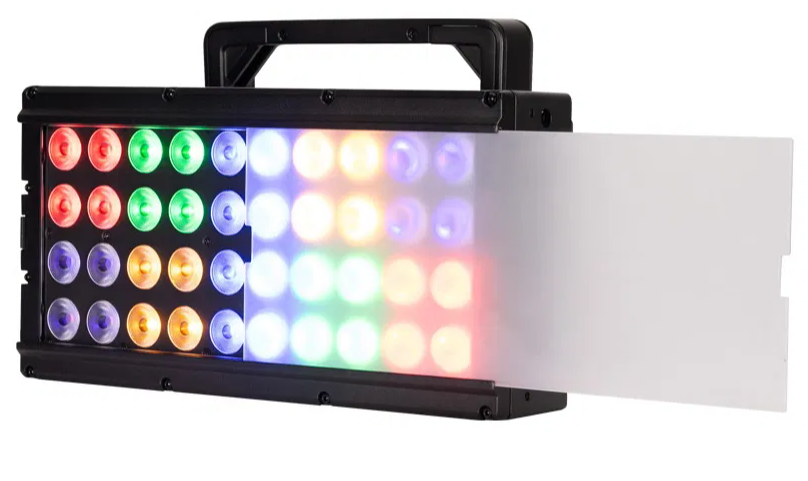

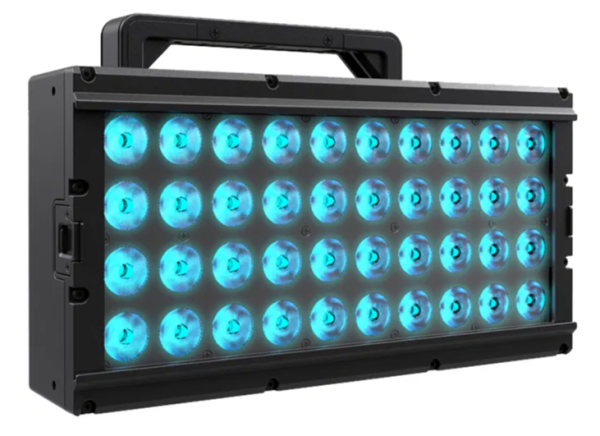

The ADJ 40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or colour strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. A magnetic, removable filter frame allows for the addition of a diffusion filter to adjust the beam angle._x005F_x000D__x005F_x000D_

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture’s functions.

Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.

ADJ 40 Hex IP Panel Manual

Features

Light Source:

LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
Beam Angle: X = 28.61°, Y = 23.72°
Field Angle: X = 50.82°, Y = 44.95°
Lumens: 19,590

Features:

IP65 rated – protects from dust, sand, moisture, water
Aria X2 Management System
All-metal construction with black housing
Includes heavy-duty bracket
Flicker free for film and broadcast
Linear variable white temperature control

Construction:

Display: OLED display with function buttons
All-metal heavy-duty housing built to last in outdoor or touring applications

Control:

24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G / 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes
4 Control Groups: 1 / 2 / 5 & 10 Groups
0-100% Dimming + smooth 16-bit Dimming
5 Dimming Curve Modes
Control Mode: DMX512, RDM (Remote Device Management)
LED Refresh Rate: Multiple settings
With Wired Digital Communication Network

Connections:

Data: IP65 Locking 5-pin DMX In/Out
Power: IP65 Locking Power In/Out

Electrical:

100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 492W @220V
Max Power Link: 4pcs @230V
Fuse Protected: T4A/250V Glass Fuse (5x20MM)

Dimensions / Weight:

Dimensions (LxWxH): 417×296.8x212mm
Weight: 11.15 kg

What’s Included:

1 x IP65 Locking Power Cable
1 x Frost Filter
1 x Safety Cable

Approvals and Ratings:

IP65
