Sales Catalogue

Hi-lights Online Store » ADJ ElectraPix Bar 8 Pak

Key Features

Kit includes 6x ADJ ElectraPix Bar 8 batten fixtures & charger flight case
Outdoor wash batten kit with battery or mains operation
Control wirelessly (DMX) or using the remote control

Out of stock

Price (inc VAT)	£4,577.00

MPN:	1226100505

Weight:

32 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

The ElectraPix Bar 8 Pak is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events, performances, or any situation where vibrant and dynamic illumination is essential.

Key Components:

1. ElectraPix Bar 8 fixtures (x6): Unleash the power of six (6) ElectraPix Bar 8 fixtures, each equipped with state-of-the-art technology including, long-life LEDs, battery-powered and wireless DMX. These lights deliver vivid and customizable colours, allowing you to create captivating light displays that suit any atmosphere. Perfect for stage productions, concerts, or any event where lighting plays a crucial role.

2. Charging Bases (x6): Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Bar 8 lights, ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access, making setup and teardown a breeze.

3. UC-IR24 Remote Control (x1): Take command of your lighting setup with the UC-IR24 remote control. This versatile device allows you to adjust colours, brightness, and other settings from a distance, providing you with convenient control over your lighting environment.

4. Outdoor Locking Power Cable (x6): Designed for durability and reliability, the outdoor locking power cables ensures a secure and weather-resistant connection.

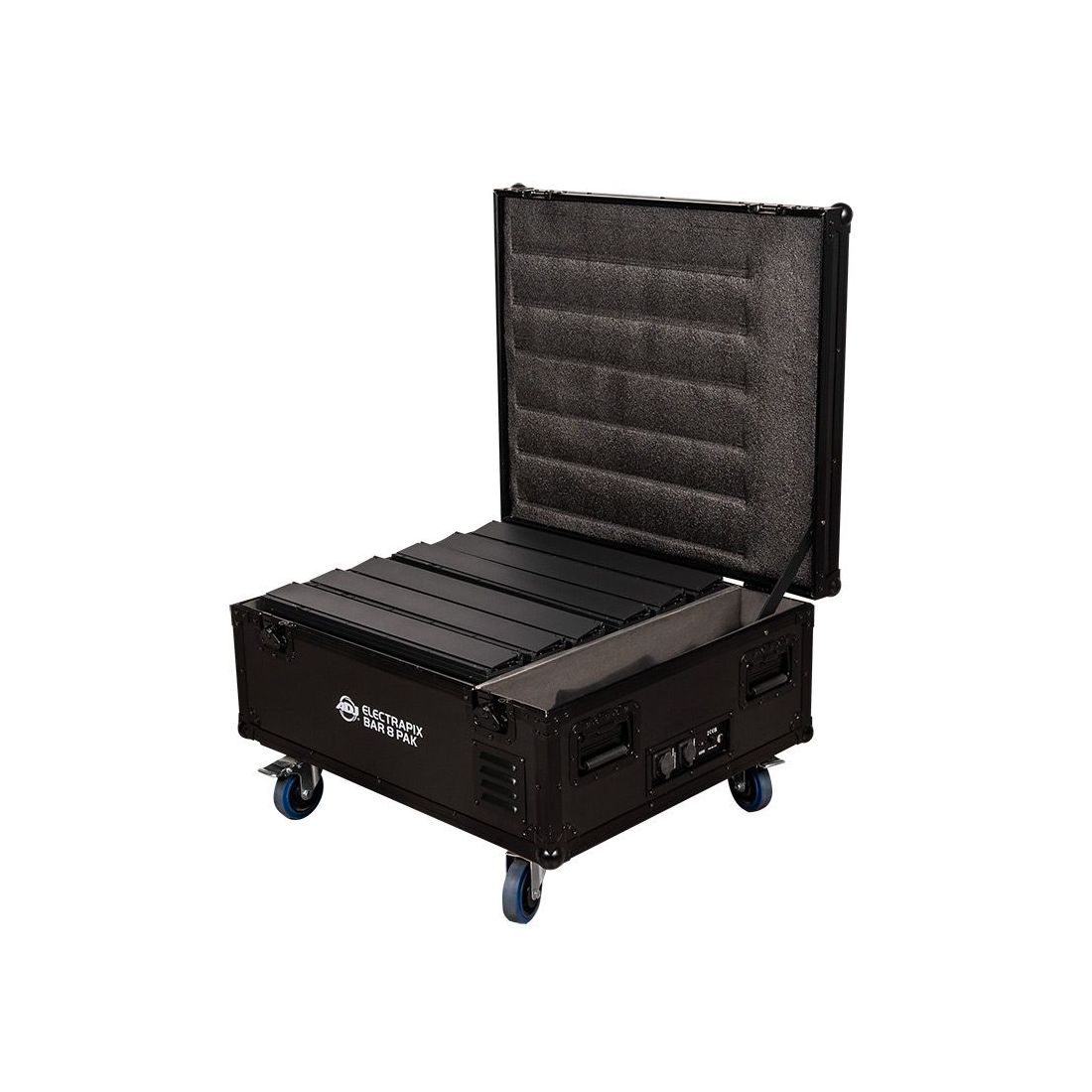

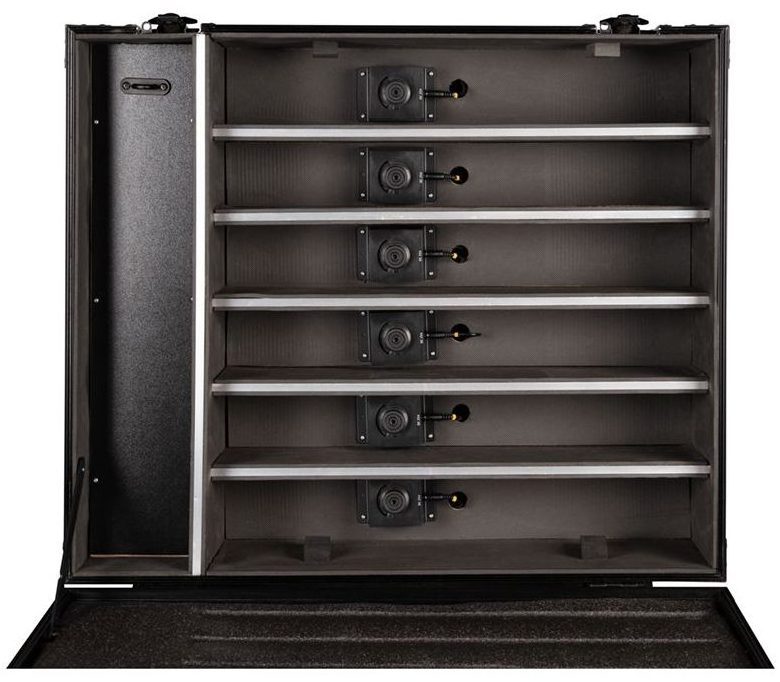

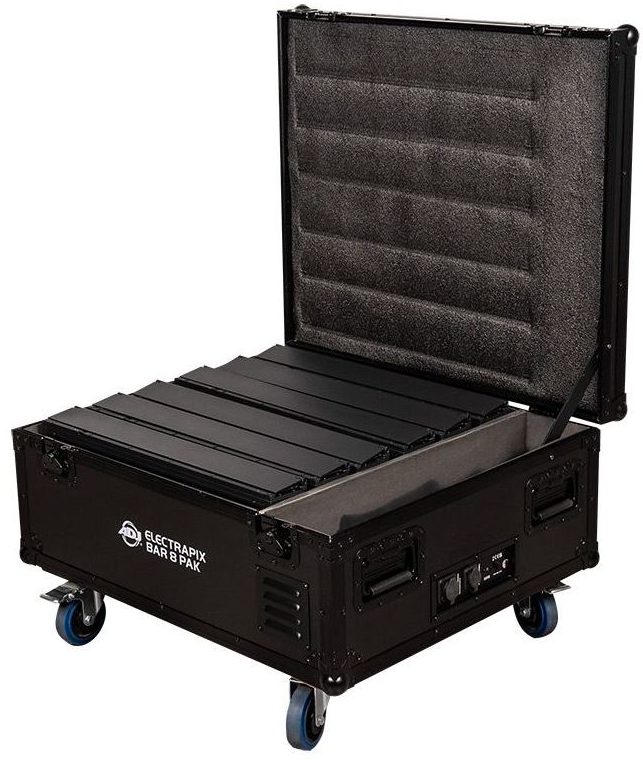

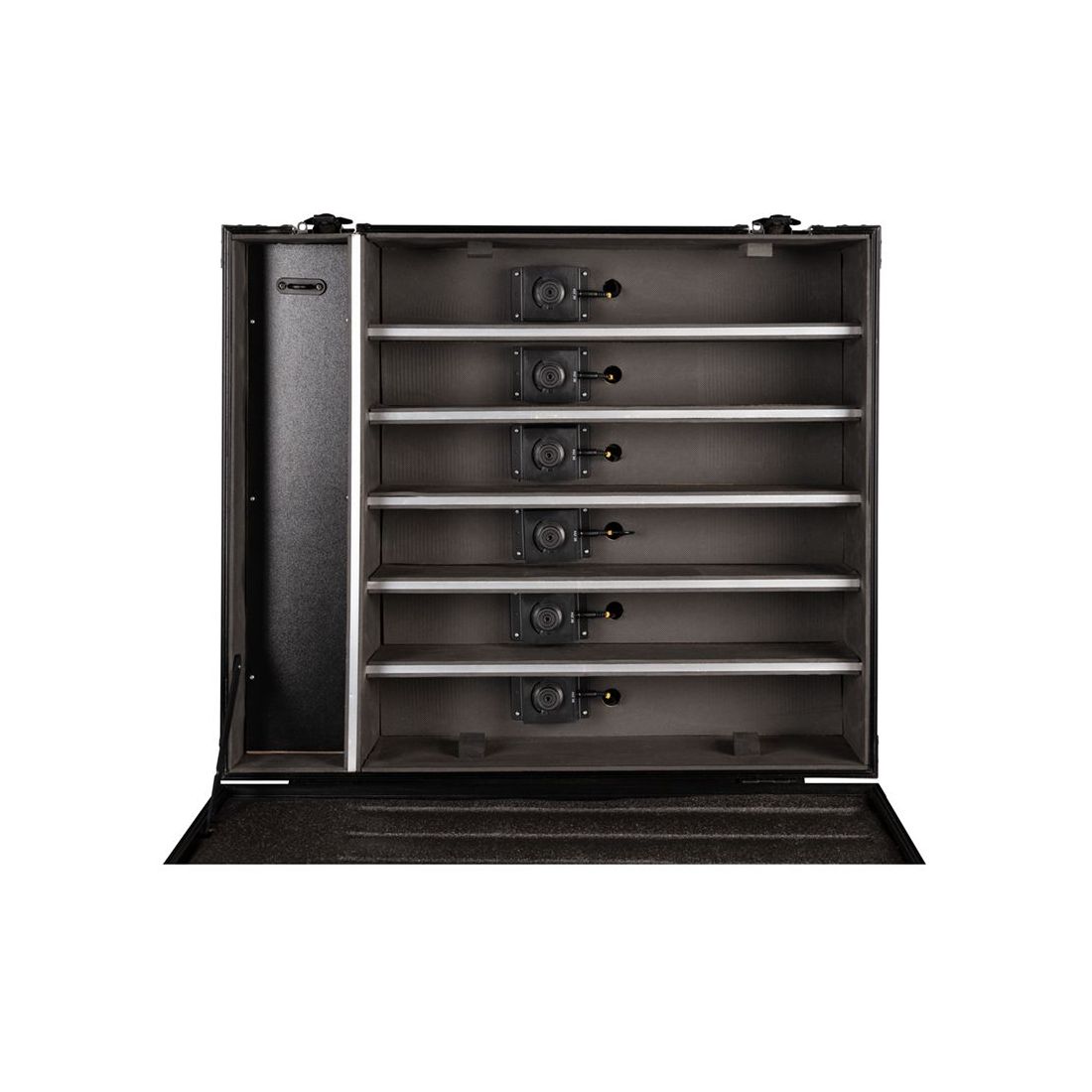

5. ElectraPix Bar 8 FC (Flight Case) (x1): Safeguard your investment and transport your equipment with ease using the ElectraPix Bar 8 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights, charging bases, remote control, and power cable. The dimensions of the flight case (LxWxH): 31.8” x 27.42” x 17.4” (807.5×696.4×441.9mm) ensure that your lighting setup remains protected during transit.

With the ElectraPix Bar 8 Pak, you have a versatile and complete lighting solution that combines innovation, convenience, and portability, making it an ideal choice for lighting and event professionals. Illuminate your world and captivate your audience with the power of ElectraPix Bar 8.

See the full features of the ADJ ElectraPix Bar 8 wash batten.

Features

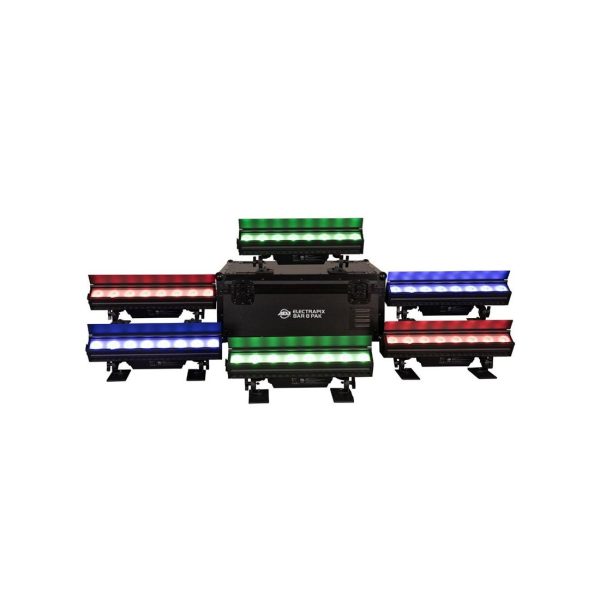

ElectraPix Bar 8 Pak Includes:

(6) ElectraPix Bar 8 Pak fixtures
(1) ElectraPix Bar 8 FC flight case
(6) ElectraPix Bar 8 IPCB charging bases & power supplies
(1) UC-IR24 wireless infrared controller
(6) IP65 locking power cables

ElectraPix Bar 8 Pak Features:

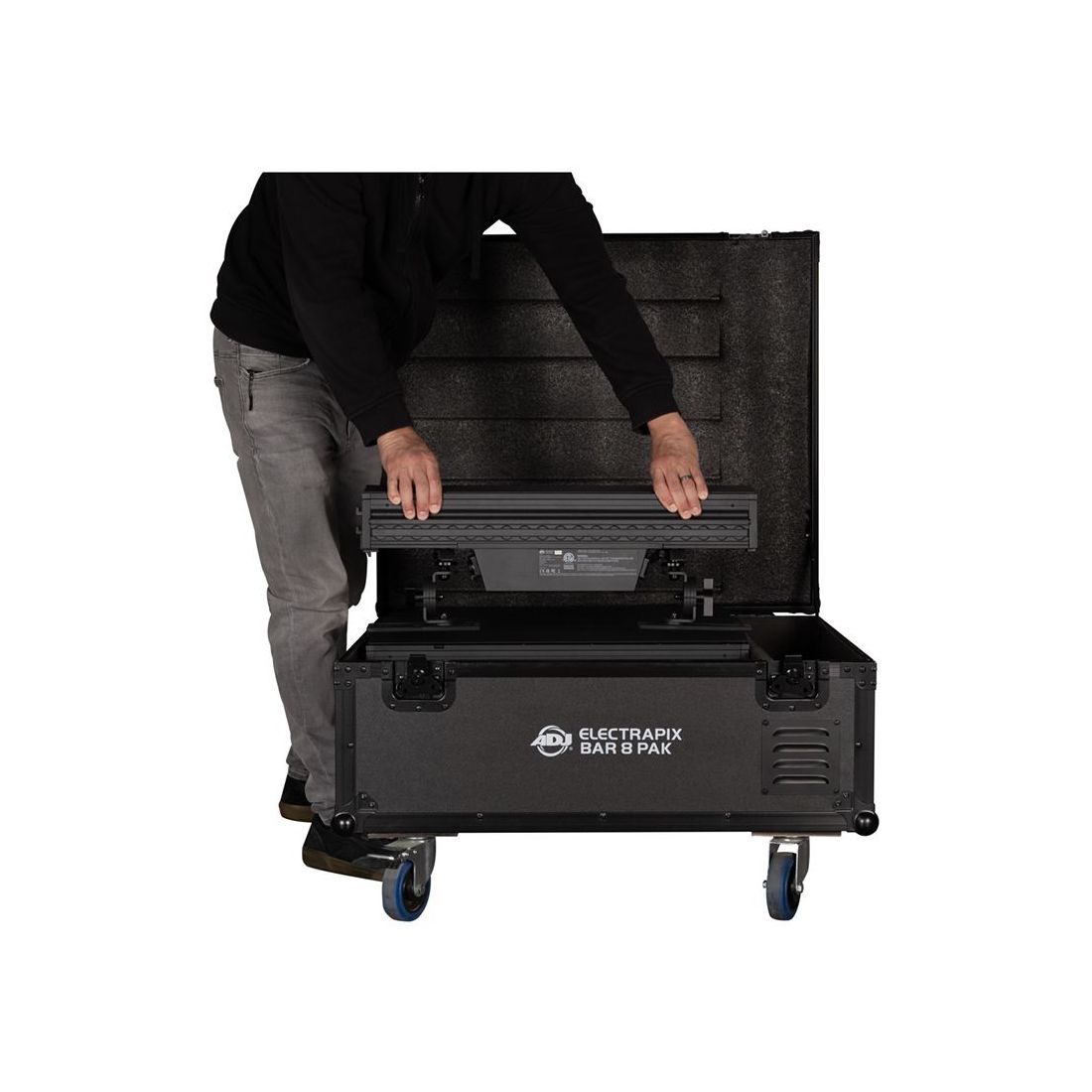

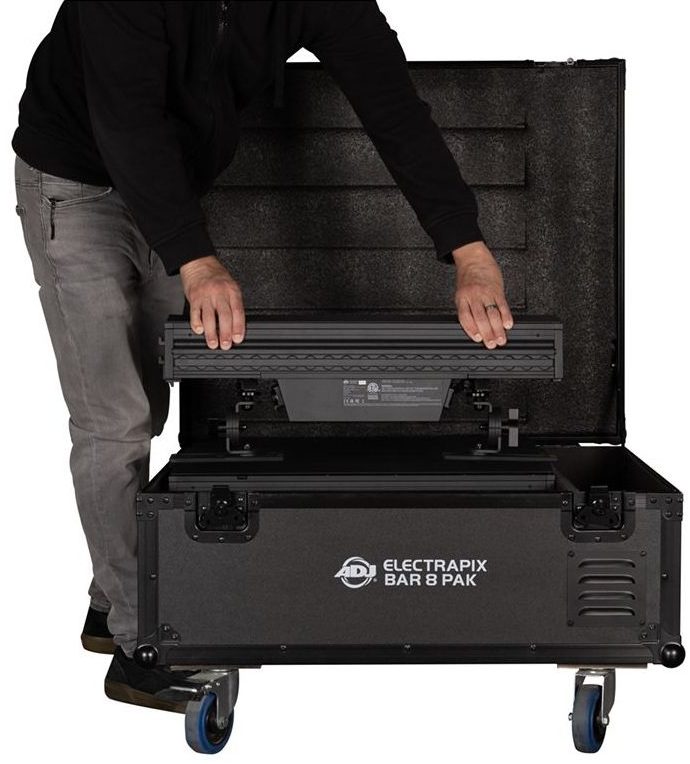

Houses, transports & charges (6) ElectraPix Bar 8 fixtures

ElectraPix Bar 8 Pak Dimensions / Weight (loaded case with 6 fixtures):

Length: 807.5mm
Width: 696.4mm
Height: 441.9mm
Loaded weight: 79kg

Flight Case Electrical / Thermal:

Power input: AC100-240V 50/60Hz
IP65 power locking input & output
Max power consumption: 400W
Power draw: 2A @ 230VAC
Charge status indicator
Operating temp: -10°C to 45°C

ElectraPix Bar 8 Fixture Specifications

Features:

8-pixel hex-colour (RGBAL+UV) LED bar
Battery or wall powered
Up to 20h battery operation
Battery operation menu option
Individual pixel control
Built-in foreground & background LED programs
Variable white colour temperature (2,300K–9,900K)
English & Spanish menu
Built-in alarm
Colour-calibrated LEDs
User-selectable refresh rates (900Hz–25kHz)
6 dim modes & 4 dim curves
Electronic strobe (0.3–11Hz)
Electronic dimming
Attach up to 4 fixtures to Accu Stand VFB1 floor base

Source:

(8) 20W RGBAL+UV foreground LEDs
(32) 0.2W RGB background LEDs
Average life: 50,000h*
*Varies with conditions, voltage, usage patterns, and dimming.

Optical:

White colour temp range: 2,300K–9,900K
Beam angle: 17°
Lens diameter: 45mm x8

Physical:

IP65 housing
OLED digital display
L-track accessory/rigging system
Glare shield & diffusion filter slot
Angle-adjustable feet
Horizontal slide lock for linking fixtures

Control:

DMX512
Aria X2 wireless DMX
Bluetooth
RDM & RDM Net compatible
IR remote (UC-IR24 included)
9 DMX modes: 5/6/9/13/22/24/48/52/66-channel
Manual control & primary/secondary mode

Connections:

5-pin XLR DMX in/out (IP65 seal when used with STRxxx cables)
IP65 locking power sockets
Battery charging socket

Dimensions & Weight:

94.5 x 586.7 x 268.7mm
Weight: 7.3kg

Power:

AC100-240V 50/60Hz input
60W power consumption
Link up to 28 fixtures @ 230VAC

Battery:

Rechargeable lithium-ion, 7,000mAh
Voltage: 22.2V
Charge time: 5h (AC or flight case)
Up to 20h operation
Battery cycles: 500

Thermal:

Ambient operating temp: -20°C to 45°C
Storage temp: -30°C to 45°C

Certifications & IP Rating:

IP65

Included Accessories:

(1) IP65 locking power cable
(1) UC-IR24 remote
(1) 20° diffusion filter

Optional Accessories:

Accu-Stand VFB floor base
LTrack A2 adapter
LTrack CA2 adapter with narrow clamp

Manufacturer Info

ADJ

Hi-Lights uses a range of ADJ products in its rental stock, as well as being a manufacturer of choice in venue installations, so we’re confident in the range of ADJ luminaires.

ADJ is a highly respected global manufacturer in the production of entertainment lighting, LED video, and atmospheric effects equipment, with over 35 years of experience in the industry.

Founded in 1985, they are known for exceptional customer support, high-quality products, and innovation inclusding the latest IP65 outdoor rated fixtures.

ADJ’s product portfolio includes moving head luminaires, static washes, beam effects, audience blinders, strobes, DMX control hardware/software, LED video panels, and related accessories, as well as fog, haze and other atmospheric effect generators. The entire ADJ range is ideal for both rental and installation markets, including live events, productions, and festivals of all sizes.

ADJ’s products are installed and used in a wide variety of venues, ranging from large outdoor events, churches, theaters, and event centers to wedding rooms and hotel ballrooms, nightclubs and lounges, and concert venues.
