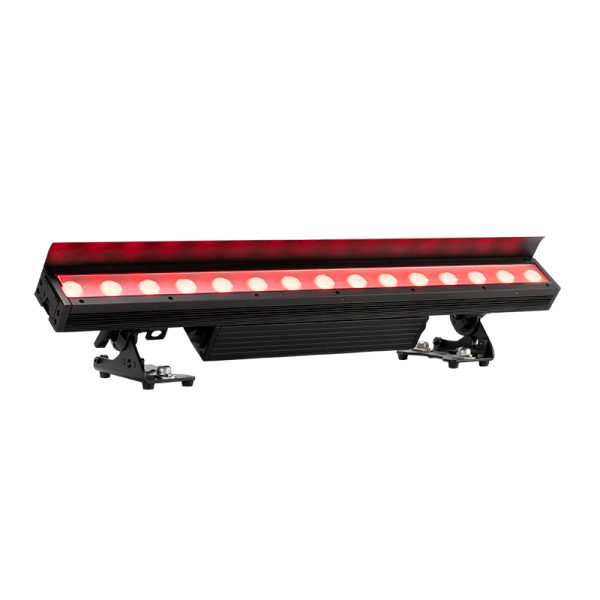

Hi-lights Online Store » ADJ Encore LB15 IP LED Batten

Key Features
- IP65 rated LED batten fixture
- 15x 20 watt Quad RGBL LEDs (Red, Green, Blue & Lime)
- 12.4° beam angle (24° with attached diffusion filter)
Price (inc VAT) | £799.00 | ||
MPN: | 1226100386 |
Weight: | 8.85 kg |
Delivery Charges |
|
Item Details
- 15 x 20⚊Watt Quad RGBL LED’s (4⚊IN⚊1: Red, Green, Blue & Lime)
- Beam angle: 12.4° (24° with attached diffusion filter)
- CRI: 89.3
- CRI R9: 69
- Lumens: 5982
- Linear Colour Temperature Control (2700K to 7000K)
- Preset Colour Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
- Individual Pixel Controllable
- 16⚊Bit Fine Colour Control (Red, Green, Blue & Lime)
- 64 built⚊in Colour Macros
- 4⚊button, DMX digital display on rear panel
- 5 Operational modes: Static Colour Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
- Supports RDM (Remote Device Management)
- With Wired Digital Communication Network
- 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- 4 selectable Dim Curves (Linear, Square Inv. Squa, S⚊Curve)
- Adjustable Refresh Rate (14 presets from 900 ⚊ 25,000Hz)
- Flicker Free operation (No flickering on camera)
- LED pulse and strobe effect
- Electronic Dimming: 0 ⚊ 100%
- 10 DMX Modes: 4, 7, 8, 13, 16, 60, 63, 72 & 120 channel
- Adjustable fan modes
- WiFLY EXR Wireless DMX built⚊in (2500 ft. / 700M line of sight)
- IP65 Rated: Ingress Protection against liquid, snow, dust and sand
- All metal construction
- IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5⚊pin sockets
- Locking, outdoor IN/Out Power connectors
- Data linkable via 5⚊pin DMX connections
- Includes glare shield
- Multi⚊voltage operation: AC 100⚊240V, 47/63Hz
- Daisy chain: 5 @ 120V, 10 @ 220V
- Max power: 198W
- Dimensions (LxWxH) 152×914.9×211.55mm
- Weight: 8.85 kg.
- (2) Omega Brackets
- IP65
User Manual
Manufacturer Info

ADJ
Hi-Lights uses a range of ADJ products in its rental stock, as well as being a manufacturer of choice in venue installations, so we’re confident in the range of ADJ luminaires.
ADJ is a highly respected global manufacturer in the production of entertainment lighting, LED video, and atmospheric effects equipment, with over 35 years of experience in the industry.
Founded in 1985, they are known for exceptional customer support, high-quality products, and innovation inclusding the latest IP65 outdoor rated fixtures.
ADJ’s product portfolio includes moving head luminaires, static washes, beam effects, audience blinders, strobes, DMX control hardware/software, LED video panels, and related accessories, as well as fog, haze and other atmospheric effect generators. The entire ADJ range is ideal for both rental and installation markets, including live events, productions, and festivals of all sizes.
ADJ’s products are installed and used in a wide variety of venues, ranging from large outdoor events, churches, theaters, and event centers to wedding rooms and hotel ballrooms, nightclubs and lounges, and concert venues.
