Hi-lights Online Store » ADJ Encore LP12 IP Par

Available to buy

Price (inc VAT)	£423.09

MPN:	1226100384

Size:

0.26m x 0.20m x 0.27m (LxWxH)

Weight:

4.75 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

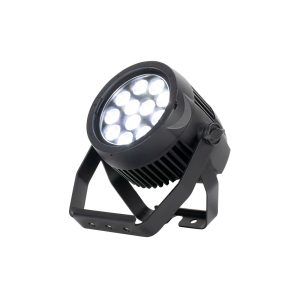

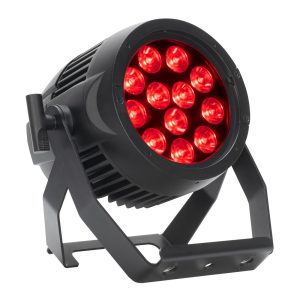

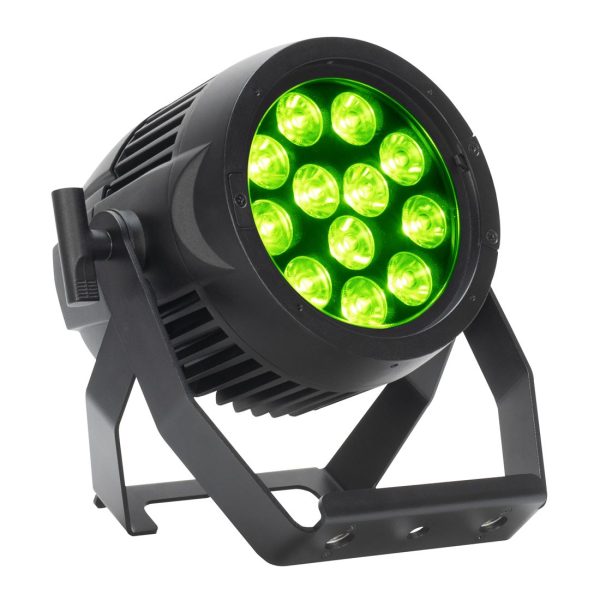

The ADJ Encore LP12IP is a versatile, heavy duty Par with twelve (12) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10-degree beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K – 7000K.

The ADJ Encore LP12IP is a versatile IP65 outdoor rated Par with 12 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10° beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

The Encore LP12IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with IP65 Locking Power connectors and IP65 rated 5-pin DMX connectors with rubber covers. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

There are several additional frost filter options that customize the beam angle. One 25° double frost filter is included in the package and optional 20°, 60°, 100°, 40°x1°, 60°x30° are sold separately.

Features

SOURCE:

Light Source: 12 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

PHOTMETRIC DATA:

Beam angle: 10°
CRI: 84.4
CRI R9: 67.9
Lumens: 4700

EFFECTS:

Linear Colour Temperature Control (2700K to 7000K)
Preset Colour Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
16-Bit Fine Colour Control (Red, Green, Blue & Lime)
64 built-in Colour Macros

CONTROL / CONNECTIONS:

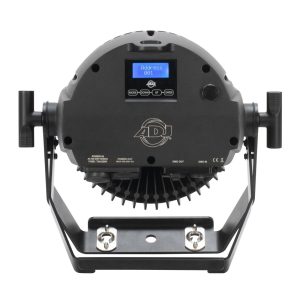

4-button, DMX digital display on rear panel
4 Operational modes: Static Colour Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
Supports RDM (Remote Device Management)
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Square, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 – 100%
6 DMX Modes: 4, 7, 8, 10, 13 & 16-channel
Quiet fan mode

CONSTRUCTION:

IP65 Rated: Ingress Protection against liquid, snow, dust and sand
All metal construction

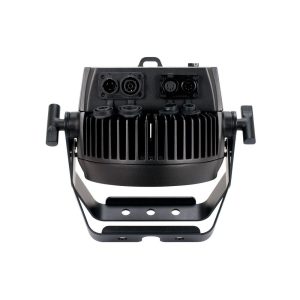

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor IN/Out Power connectors
Data linkable via 5-pin DMX connections
Includes 25° double frost filter, optional 20°, 60°, 100°, 40°x1°, 60°x30° are sold separately
Scissor Yoke with Quick Locks & safety eye
Optional Omega bracket available

ELECTRICAL / THERMAL:

Multi-voltage operation: AC 100-240V, 47/63Hz
Daisy chain: 12 @ 220V
Max power: 192W

DIMENSIONS / WEIGHT:

Dimensions (LxWxH): 262x200x274mm
Weight: 4.75 kg.

Manufacturer Info

ADJ

Hi-Lights uses a range of ADJ products in its rental stock, as well as being a manufacturer of choice in venue installations, so we’re confident in the range of ADJ luminaires.

ADJ is a highly respected global manufacturer in the production of entertainment lighting, LED video, and atmospheric effects equipment, with over 35 years of experience in the industry.

Founded in 1985, they are known for exceptional customer support, high-quality products, and innovation inclusding the latest IP65 outdoor rated fixtures.

ADJ’s product portfolio includes moving head luminaires, static washes, beam effects, audience blinders, strobes, DMX control hardware/software, LED video panels, and related accessories, as well as fog, haze and other atmospheric effect generators. The entire ADJ range is ideal for both rental and installation markets, including live events, productions, and festivals of all sizes.

ADJ’s products are installed and used in a wide variety of venues, ranging from large outdoor events, churches, theaters, and event centers to wedding rooms and hotel ballrooms, nightclubs and lounges, and concert venues.
