Hi-lights Online Store » ADJ Encore LP18 IP Par

Features

18x 20 watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
64 built-in Colour Macros & Colour Temperature Control
IP65 Rated: Ingress Protection against liquid, snow, dust and sand

Available to buy

Price (inc VAT)	£500.00

MPN:	1226100385

Weight:

7.15 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

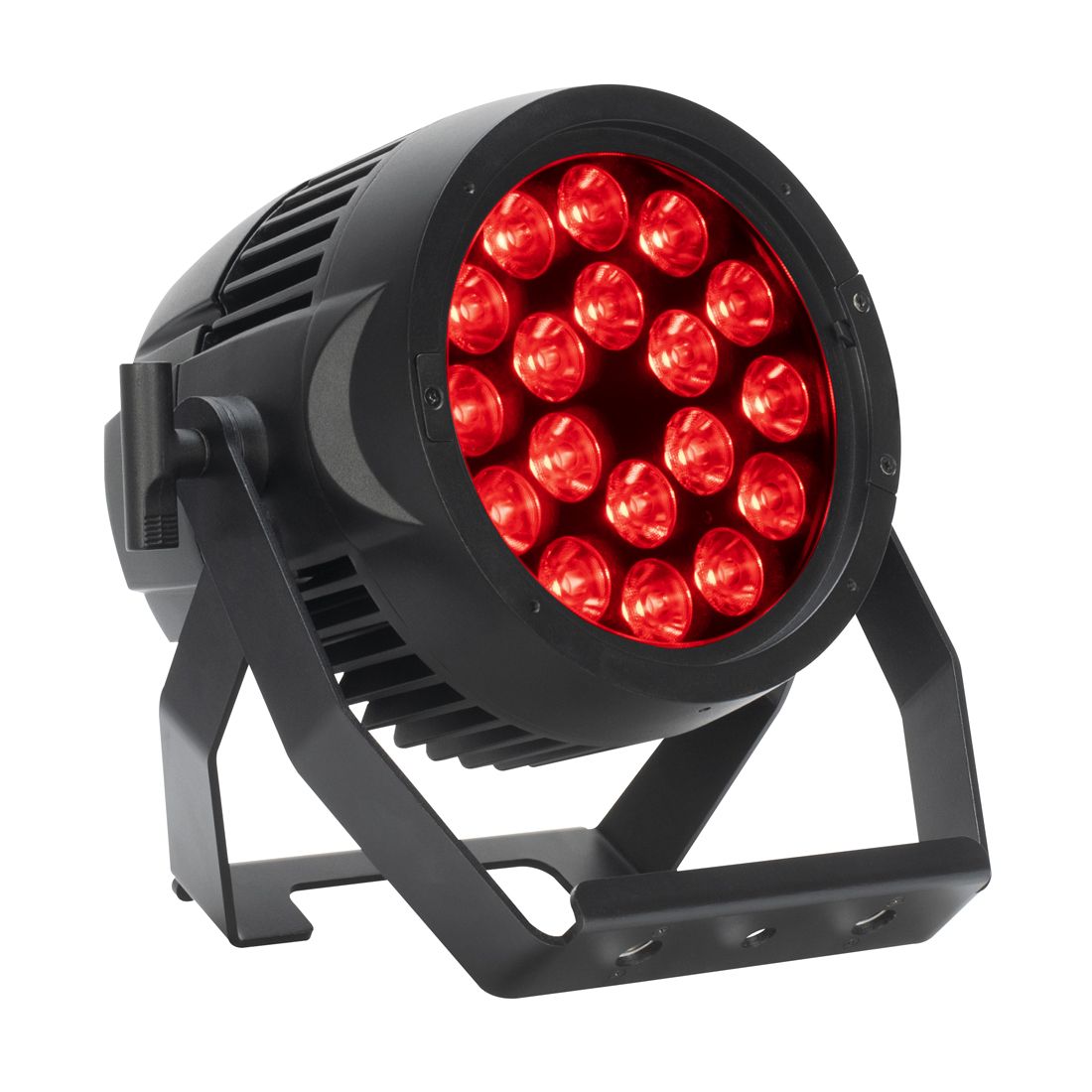

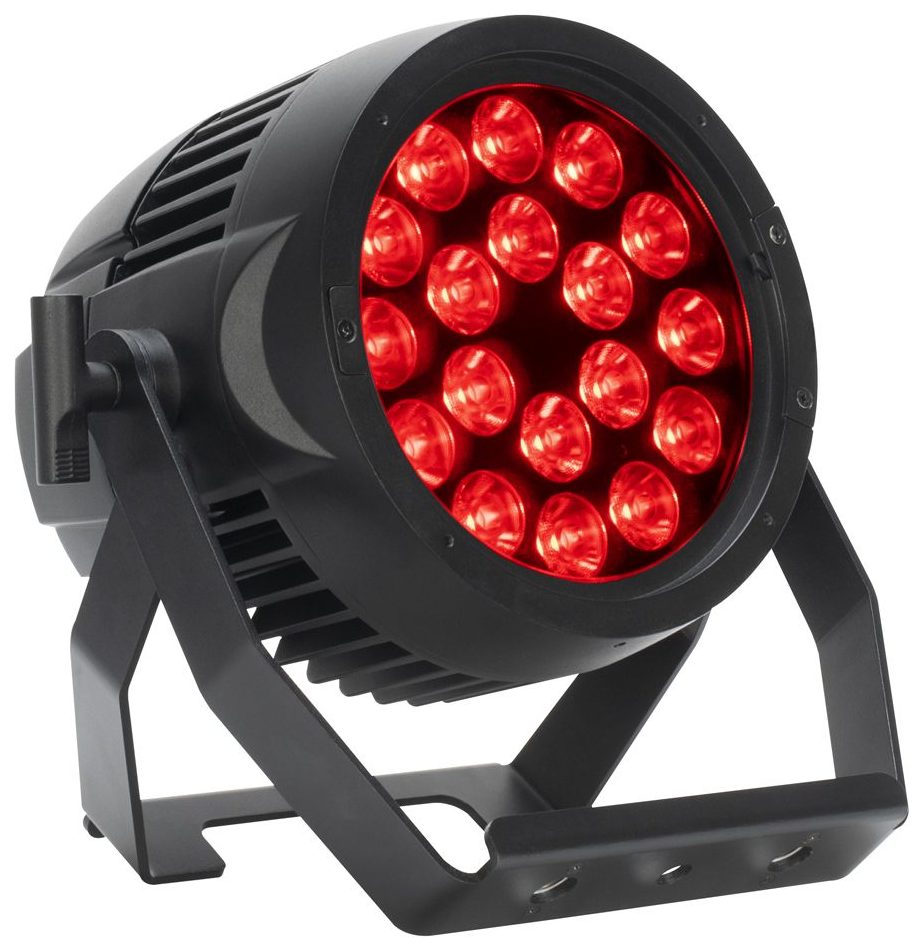

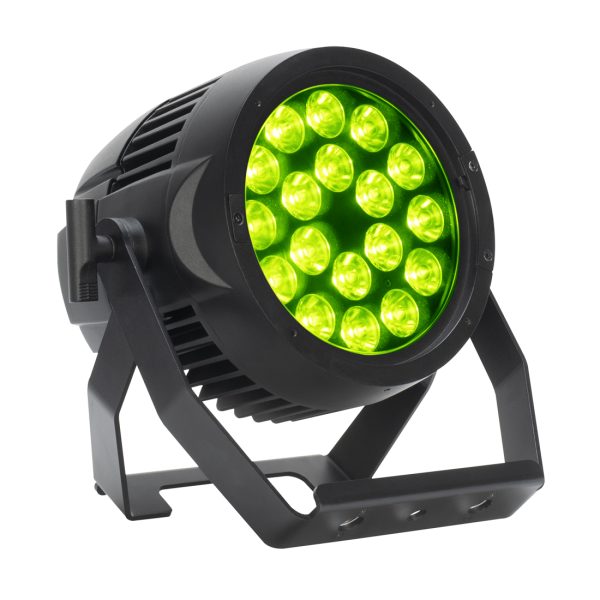

The ADJ Encore LP18IP is a versatile, heavy duty Par with eighteen (18) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10-degree beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white colour temperature control from 2700K – 7000K.

The ADJ Encore LP18IP is a versatile IP65 outdoor rated Par with 18 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10-degree beam angle, users may produce wide washes with smooth colour mixing from 64 built-in colour macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.

The Encore LP18IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with IP65 Locking Power connectors and IP65 rated 5-pin DMX connectors with rubber covers. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

There are several additional frost filter options that customize the beam angle. One 25° double frost filter is included in the package and optional 20°, 60°, 100°, 40°x1°, 60°x30° are sold separately.

Features

Source:

Light Source: 18 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

Photometrics:

Beam angle: 10°
CRI: 86.2
CRI R9: 82.8
Lumens: 7300

Effects:

Linear Colour Temperature Control (2700K to 7000K)
Preset Colour Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
16-Bit Fine Colour Control (Red, Green, Blue & Lime)
64 built-in Colour Macros

Control & Connections:

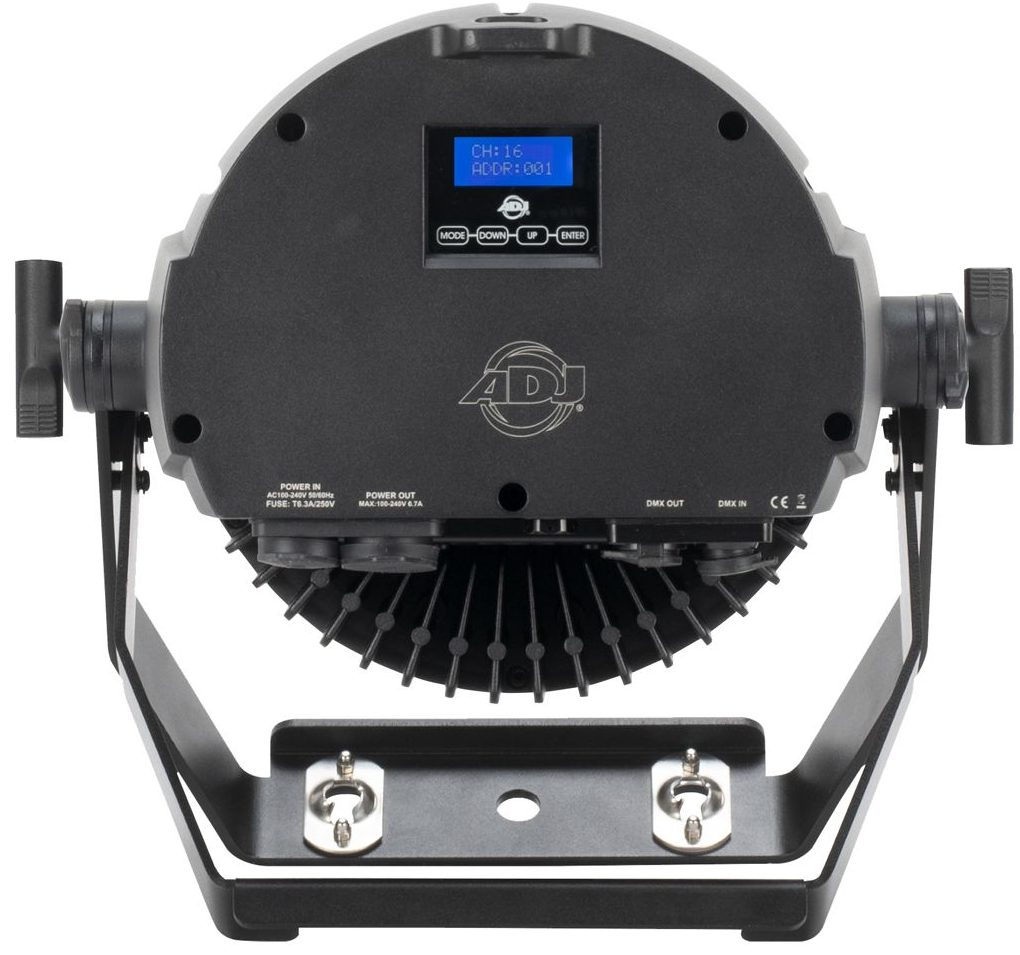

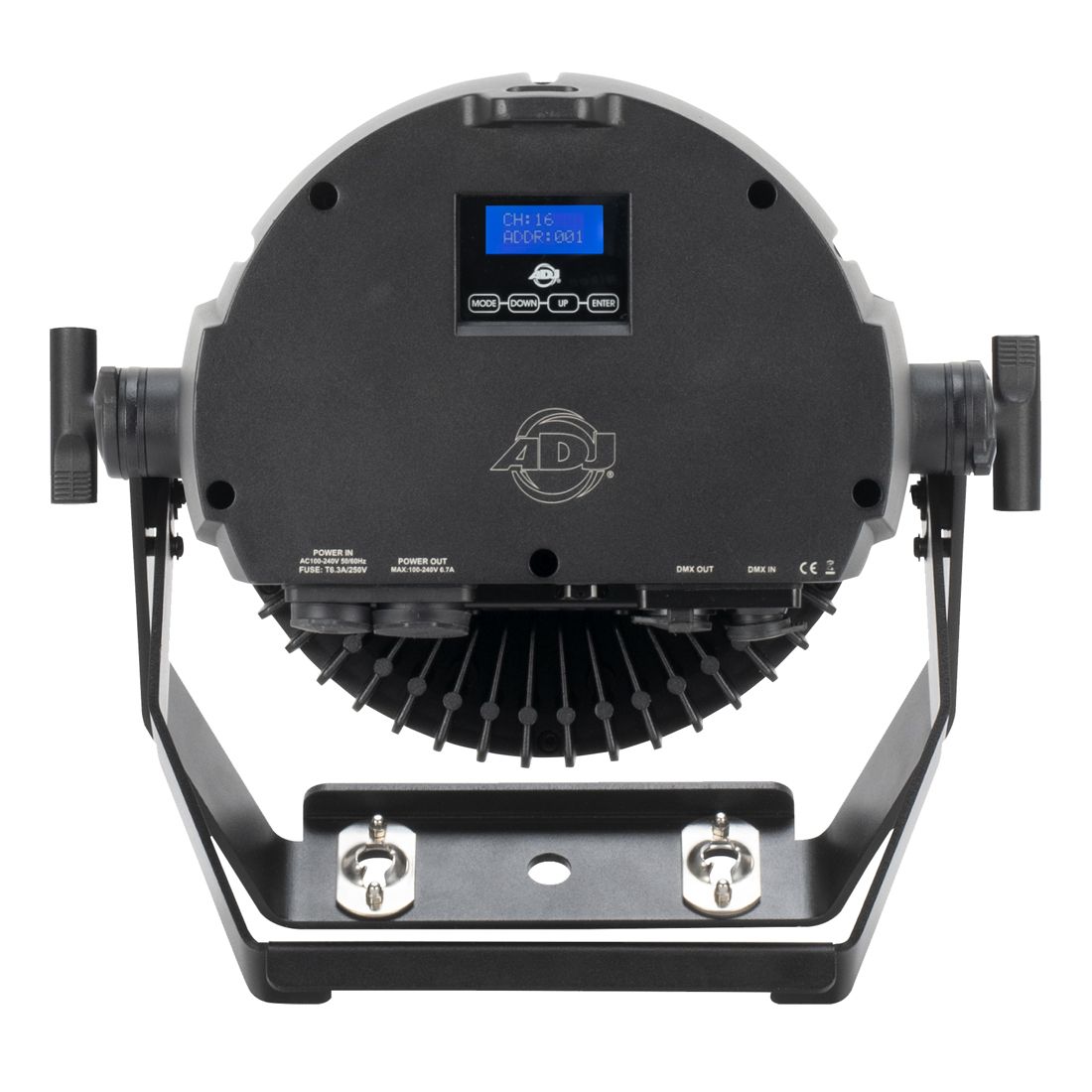

4-button, DMX digital display on rear panel
4 Operational modes: Static Colour Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
Supports RDM (Remote Device Management)
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Square, S-Curve)
Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 – 100%
6 DMX Modes: 4, 7, 8, 10, 13 & 16-channel
Quiet fan mode

Construction:

IP65 Rated: Ingress Protection against liquid, snow, dust and sand
All metal construction

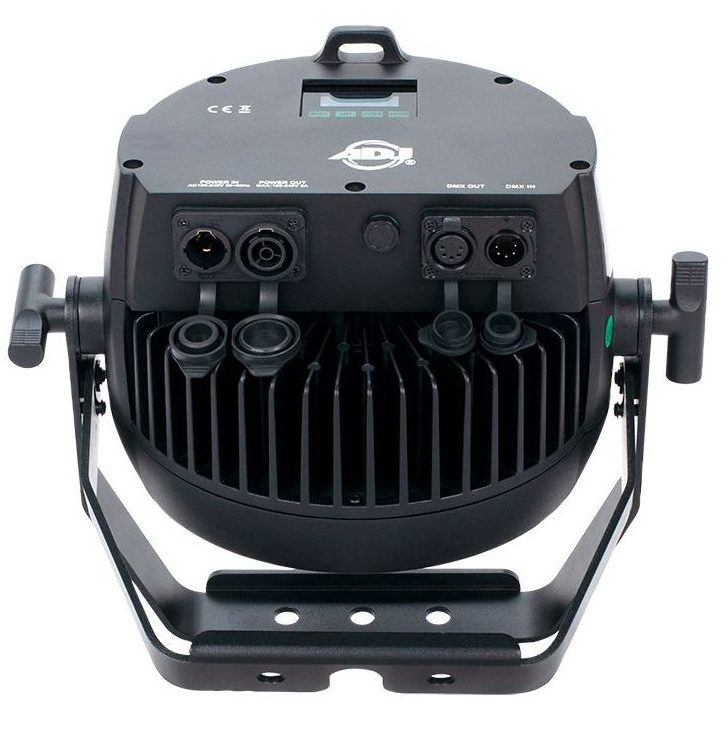

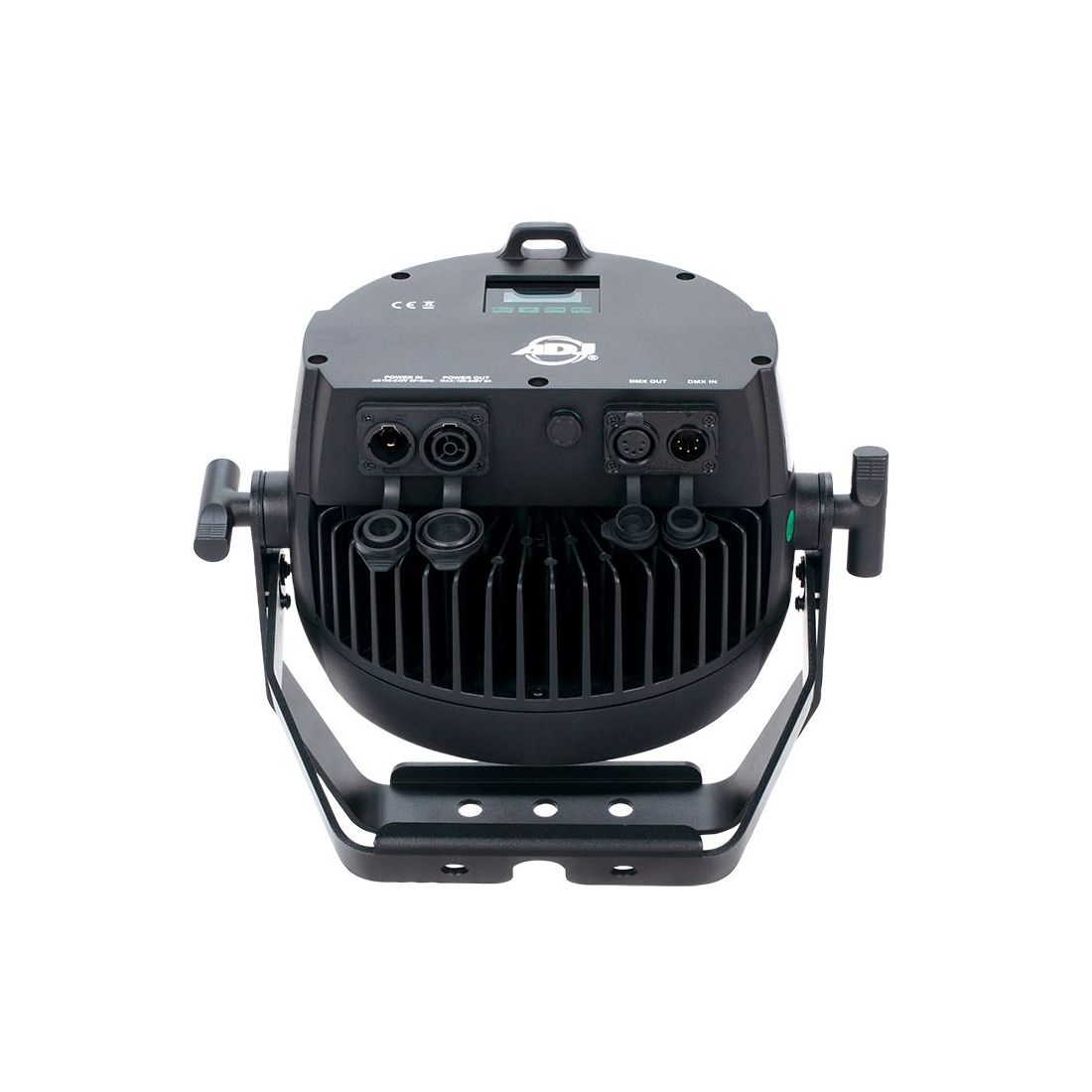

IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
Locking, outdoor IN/Out Power connectors
Data linkable via 5-pin DMX connections
Includes 25° double frost filter, optional 20°, 60°, 100°, 40°x1°, 60°x30° are sold separately
Scissor Yoke with Quick Locks & safety eye
Optional Omega bracket available

Electrical & Thermal:

Multi-voltage operation: AC 100-240V, 47/63Hz
Daisy chain: 6 @ 220V
Maximum power draw: 240W

Dimensions & Weight:

Dimensions (LxWxH): 300x234x289mm
Weight: 7.15 kg.
