Hi-lights Online Store » ADJ Encore LP32 IP

Available to buy

Price (inc VAT)	£1,087.00

MPN:	1226100387

Size:

0.35m x 0.23m x 0.17m (LxWxH)

Weight:

11 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

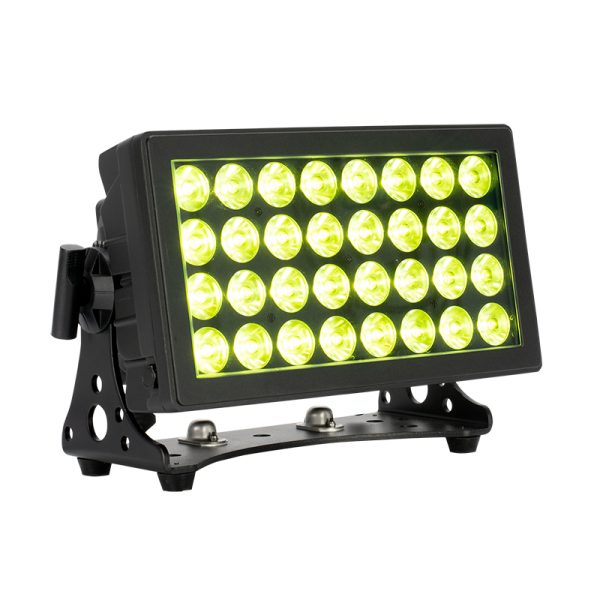

The ADJ Encore LP32 IP offers an impressive light output and versatile design in a compact wash fixture. The ADJ Encore LP32IP is multi-functional LED wash lighting fixture with an IP65-rated casing. It is part of ADJ’s Lime Par Series of LED fixtures utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the color spectrum.

The LP32IP’s LEDs are arranged into 8 individually controllable sections, which can be used to create engaging ‘eye candy’ animated patterns and pixel-mapped effects. It offers a tight native beam angle of 10.5-degrees, which can be easily widened to 24.8-degrees using the included diffusion filter and magnetic filter frame. The included heavy-duty bracket can either be used to stand the fixture directly on the floor or to mount it to truss using its integrated omega clamp receivers. The bracket’s design also incorporates a sure-lock system which slots into place at 10-degree intervals, making it extremely easy to set multiple fixtures to precisely the same angle.

With a robust all metal construction and durable black powder coating, the LP32IP is designed for use in professional entertainment lighting environments. It has an IP65 rating, which means that it is sealed to prevent the ingress of liquid, snow, dust, and sand. This makes it suitable for temporary outdoor use as well as for indoor applications where the fixture may be subject to liquid spillage or come into contact with excessive dust or dirt.

Features

Source:

LED: 32 x 20W RGBL LED’s (50,000 hr.)
Beam Angle: 10.5°, 24.8° with Frost Filter
Field Angle: 23.7°, 47° with Frost Filter
LUX: 157,491 @ 1M, 6,300 @ 5M (Full On); 28,363 @ 1M, 1,135 @ 5M (Full On) with Frost Filter

Features:

IP65 rated – protects from dust, sand, moister, water
All metal construction with black housing
Includes heavy duty floor / mounting bracket with omega clamp receivers
Sure-lock locking bracket system (securely locks every 10°)
Includes magnetic removable filter frame to add a diffusion filter
Flicker free for film and broadcast
Linear variable white temperature control from 2700K to 7000K
Built-in antenna for WiFLY EXR Wireless DMX

Construction:

Display: OLED display with function buttons
Data In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections)
Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections)
All Metal Heavy-Duty Housing: Built to last in outdoor or touring applications

Control:

Multiple DMX channel modes
8 individually controlled LED zones
0-100% Dimming + smooth 16-bit Dimming
6 Dim Modes
4 Dim Curves
User settable Dim Speed control
Control Mode: DMX512, RDM (Remote Device Management)
LED Refresh Rate: 900Hz – 25Khz
WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

Electrical:

Power voltage: AC100-240V, 47/63Hz (Multi-voltage)
Daisy chain up to 2 fixtures max (@ 120V); 6 fixtures max (@ 240V)
Power consumption: 334W Max

Dimensions & Weight:

Dimension: 13.75”x 9” x 6.75” / 350x230x170mm
Weight: 24.25 lbs. / 11kg.

Included Accessories:

Removable frost filter with metal frame
IP65 locking power cable

Approvals / Rating:

CE Certified

Manufacturer Info

ADJ

Hi-Lights uses a range of ADJ products in its rental stock, as well as being a manufacturer of choice in venue installations, so we’re confident in the range of ADJ luminaires.

ADJ is a highly respected global manufacturer in the production of entertainment lighting, LED video, and atmospheric effects equipment, with over 35 years of experience in the industry.

Founded in 1985, they are known for exceptional customer support, high-quality products, and innovation inclusding the latest IP65 outdoor rated fixtures.

ADJ’s product portfolio includes moving head luminaires, static washes, beam effects, audience blinders, strobes, DMX control hardware/software, LED video panels, and related accessories, as well as fog, haze and other atmospheric effect generators. The entire ADJ range is ideal for both rental and installation markets, including live events, productions, and festivals of all sizes.

ADJ’s products are installed and used in a wide variety of venues, ranging from large outdoor events, churches, theaters, and event centers to wedding rooms and hotel ballrooms, nightclubs and lounges, and concert venues.
