Hi-lights Online Store » ADJ Jolt Panel FX2

Available to buy

Price (inc VAT)	£689.00

MPN:	1226200072

Size:

0.41m x 0.15m x 0.26m (LxWxH)

Weight:

9.1 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

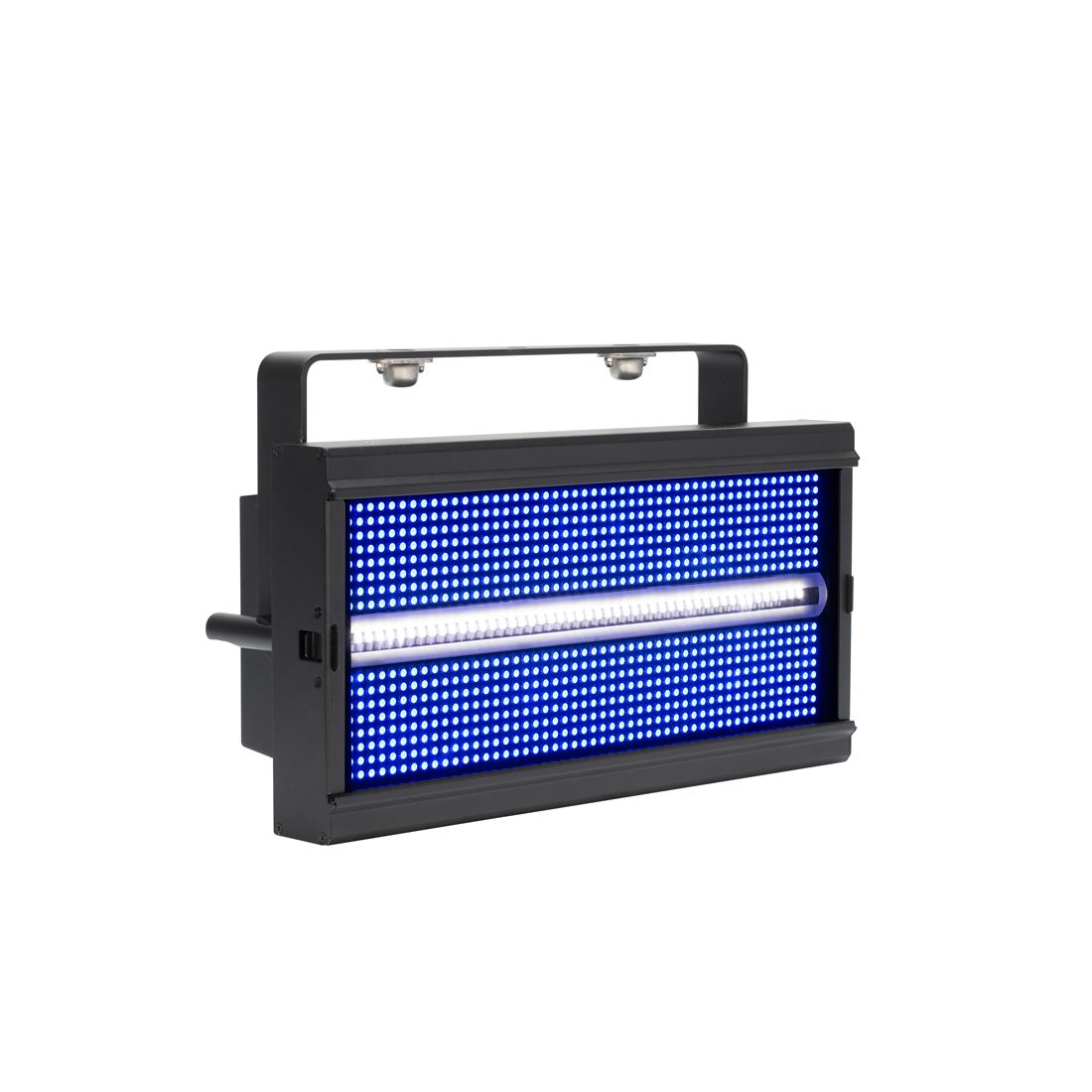

The ADJ Lighting Jolt Panel FX2 is an innovative multi-use strobe, wash & eye candy fixture. It is equipped with 800 x .5-Watt RGB SMD LEDs for colour strobe, wash and eye candy effects, as well as 48 x 5-Watt white SMD LEDs located in the centre of the fixture to create the traditional look of a strobe. Both types of LED are grouped into independent controllable zones (6 white and 40 colour), allowing for the creation of eye-catching animated chase patterns. The Jolt Panel FX2’s massive light output is specifically designed for large stages, nightclubs, live events and touring. Take a look at the video below to see the Jolt Panel FX2 in action!

Building off the success of the original Jolt Panel FX, the new Jolt Panel FX2 features upgrades that will help Lighting Designers add a new level of creativity to their lightshows. ADJ’s proprietary Aria X2 wireless DMX is built-in to each fixture (it is also compatible with ADJ’s WiFLY EXR wireless DMX), which allows data distribution to occur wirelessly. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture. These filters blur the pixel dots and provide designers with another creative way to change the effect from project to project.

The Jolt Panel FX2 offers users an easy way to navigate the built-in features from an LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, colour macros, LED refresh rate and gamma settings, as well as setting the DMX address and channel modes.

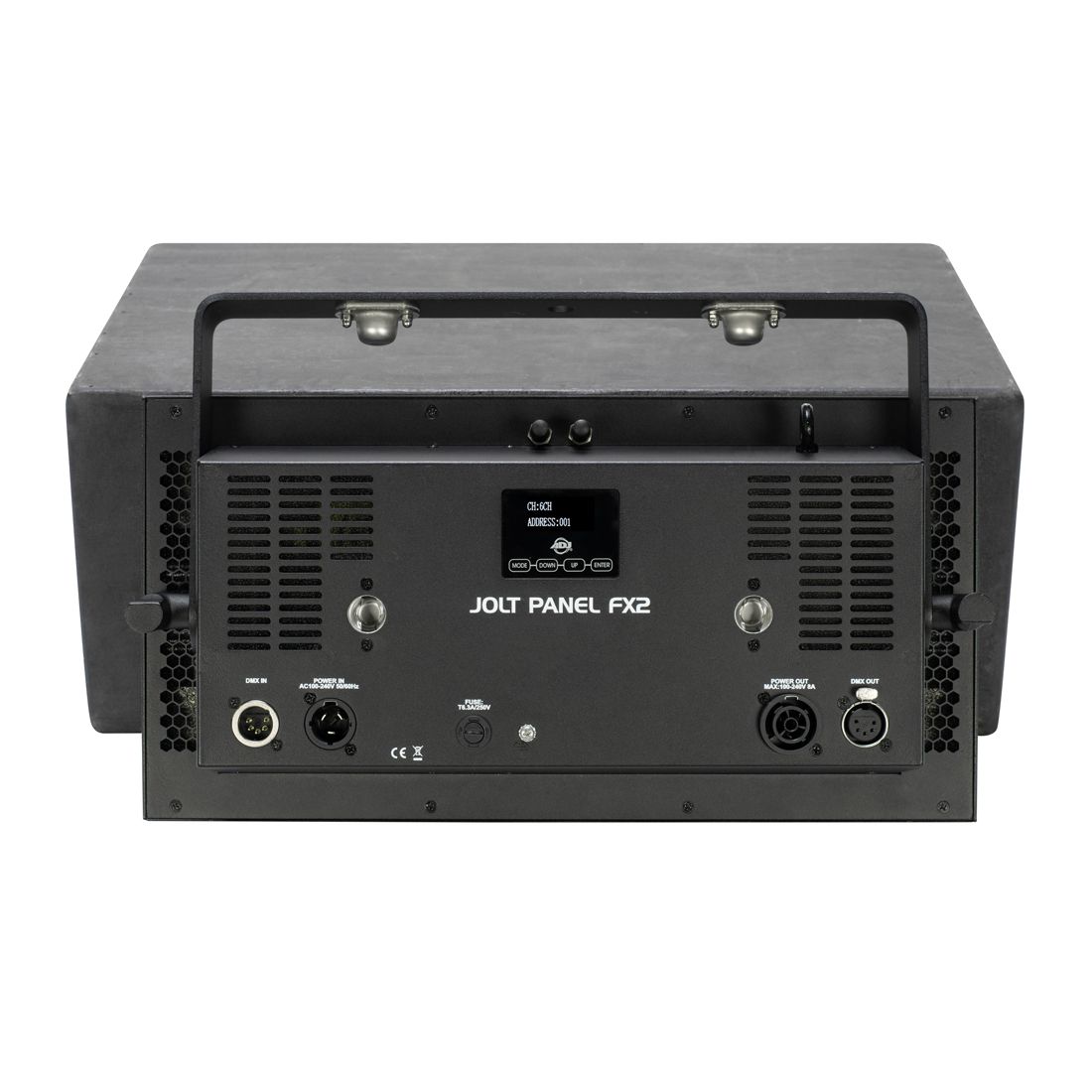

The rear panel has conveniently located 5-pin DMX in/out connections, IP65 locking power in/out sockets to daisy chain power, plus an OLED display with 4-button menu. There are also holes to connect an omega bracket to the Jolt Panel FX2 as an alternative to its variable angle bracket.

Features

LIGHT SOURCE:

800 x 0,5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs
Beam Angle: 73°
Field Angle: 111°
RGB LED Specs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm
White LEDs CCT: Typical 7400K (Min 6900 – Max 8000), 472nm
CRI: 69.4
50,000 Hour Average LED Life

FEATURES:

Aria X2 Wireless Management
40 x RGB LED Zones (126, 141 and 143CH Modes)
6 x Cool White LED Zones (51, 81, 83, 126, 141 and 143CH Modes)
67 Built-In Colour Temperature Presets (2300K-8900K)
25 Built-in RGB LED Program Macros
9 Built-in Cool White LED Program Macros
Channel for Light Shaping Filters (to Blur Pixel Dots)

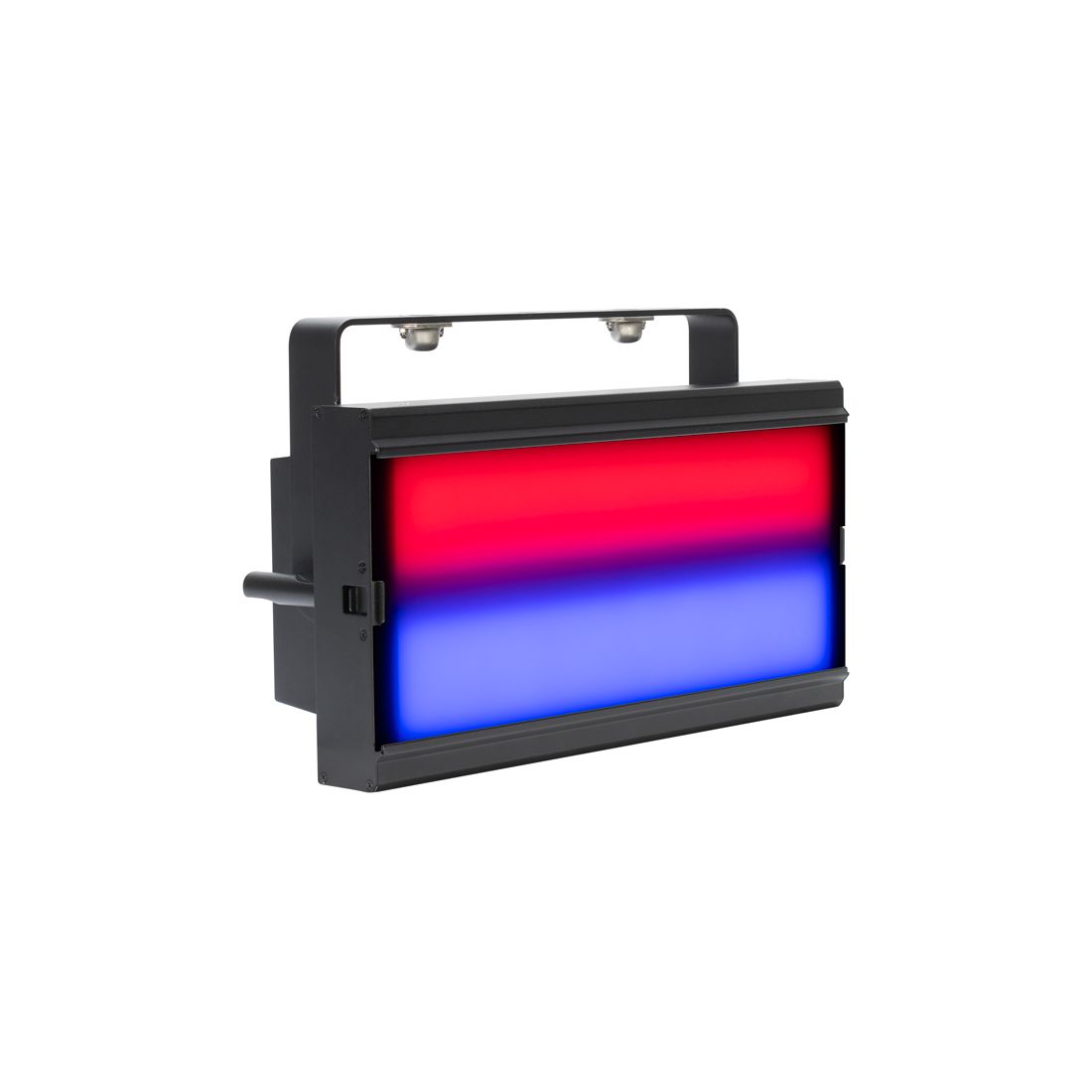

Includes Frost Filter Lens
Built-in Receivers to Connect an Omega Bracket (sold separately)

CONTROL:

Control Protocols: DMX, Aria X2 and RDM
10 DMX Channel Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law & S Curve)
0-100% Smooth Dimming
Strobe, Shutter & Pulse Control
Max Strobe Rate 20Hz; Min Strobe Rate: 1Hz.
Refresh Rate: 900Hz – 25kHz.
Display: OLED Display with 4-Button Touch Menu

CONNECTIONS:

Data: Locking 5-pin DMX In/Out
Power: IP65 Locking Power In/Out

ELECTRICAL:

100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 208W @230V
Max Power Link: 12pcs @230V
Fuse Protected: T5A/250V Glass Fuse (5*20MM)

DIMENSIONS / WEIGHT:

Length: 153.8mm
Width: 417mm
Height: 263.5mm
Weight: 9,1kg

WHAT’S INCLUDED:

1x IP65 locking power cable
Diffusion filter

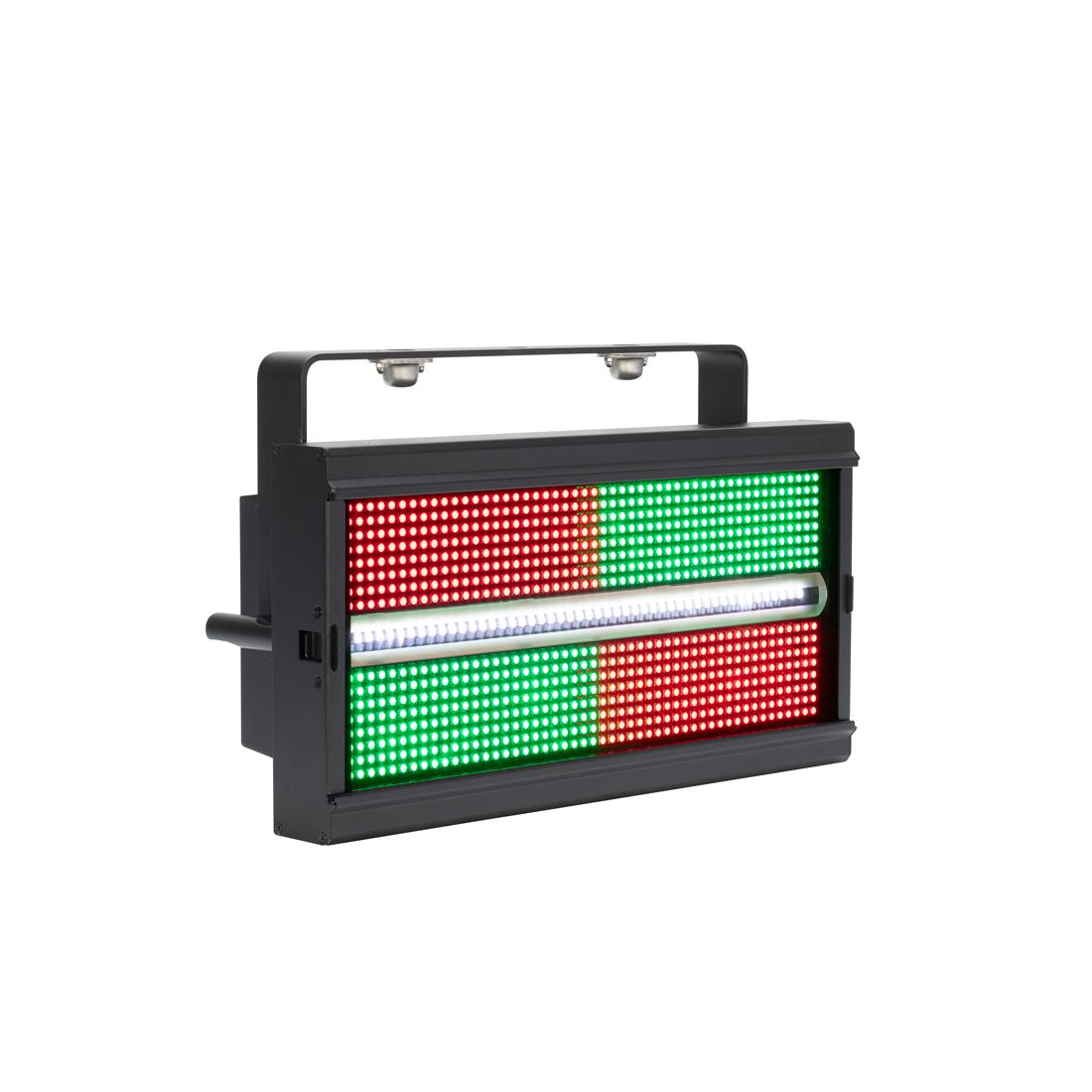

ADJ Jolt Panel FX2 Green Red & White View
