Hi-lights Online Store » ADJ Protégé XS Moving Head Fixture

Key Features

LED Beam, spot & wash moving head fixture
Aria X2 Wireless system onboard
360° continous pan

Available to buy

Price (inc VAT)	£1,565.00

MPN:	1237000421

Weight:

17.85 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Available to pre-order, released 13th March 2026

Enquire about this item

Item Details

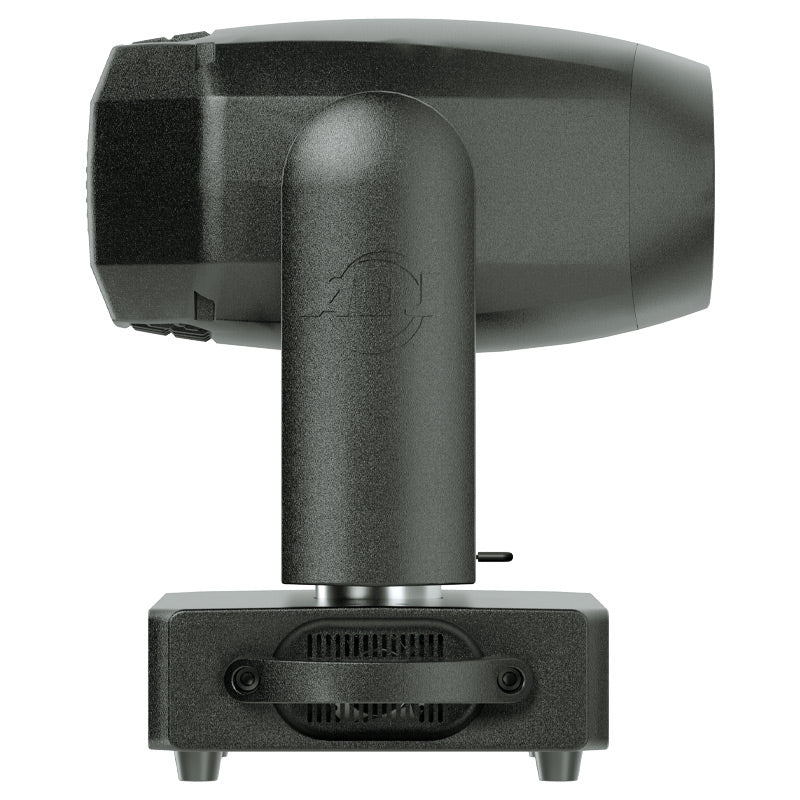

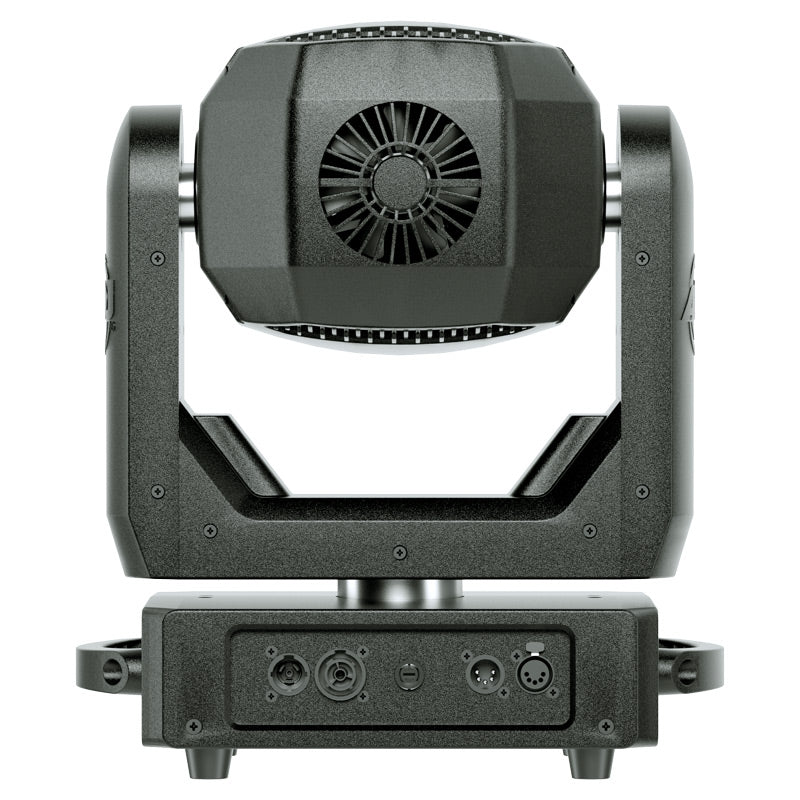

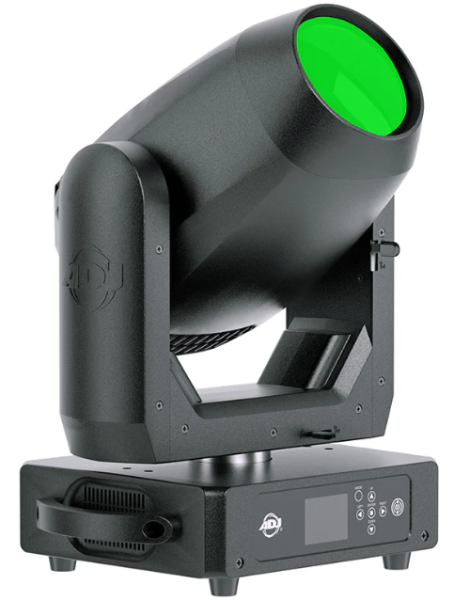

Compact in size yet mighty in performance, the ADJ Protégé XS is a next-generation LED-powered Beam/Spot/Wash moving head spot luminaire that delivers exceptional creative potential from a streamlined form factor. Harnessing the output of a potent 250-watt white LED engine, it produces up to 9,800 lumens of crisp, high-intensity light. Designed to replace ADJ’s popular Focus Spot 4Z and 5Z models, the Protégé XS builds upon their proven reliability with enhanced optical precision, increased output, and refined effects.

This versatile fixture features a motorized zoom range of 3.8°–38°, allowing for everything from tight aerial beams, defined spot looks, to broad stage washes. Its dual colour wheel system offers a wide palette of options, including 3200K CTO and 9000K CTB filters, while dual GOBO wheels (one rotating and replaceable, one static) provide a comprehensive range of textural projection possibilities. Creative effects are expanded even further through dual overlay-capable prisms – one 6-facet circular and one 6-facet linear – complemented by a heavy frost filter for smooth washes and an expressive animation wheel.

Engineered for modern control environments, the Protégé XS offers both wired 5-pin DMX and wireless Aria X2 management, alongside convenient NFC configuration from its base. Its three-phase motors ensure smooth, fast, and precise movement, including 360° continuous pan rotation, with pan/tilt locks for secure transport and setup.

Compact, powerful, and affordably positioned, the Protégé XS brings professional-grade performance to churches, clubs, theatres, and event productions. Carrying forward the legacy of ADJ’s renowned Focus Spot Series, it redefines what a compact moving head can achieve — proving that true brilliance often comes in smaller packages.

Features

2 year warranty
250W White LED Engine
Colour Temperature: 8500K (+/-200K)
Motorized zoom range: 4.8°–38°
Motorized Focus
9,800 Total Lumens
CRI: 73
6-Facet Circular & 6-Facet Linear Rotating Prisms
Heavy Frost Filter
Gobo Wheel 1: 7 Rotating Interchangeable Glass Gobos
Gobo Wheel 2: 11 Static Gobos (includes 2 beam reducers)
Animation Wheel on Movable Arm
2 Colour wheels: Each with 8 colours + open
Colour Wheel 1: Red, Blue, Green, Orange, Quad Colour, Yellow, Magenta, Congo Blue
Colour Wheel 2: Dark Red, Light Turquoise, UV, Pink, Quad Colour, Lavender, CTO 3200K, CTB 9000K
Control protocols: DMX and RDM
3 DMX Channel Modes (Basic / Standard / Extended)
Aria X2 Wireless Management System
NFC System
Pan/tilt transit lock
Pan/tilt auto correction
16-Bit pan/tilt positioning
Pan: 540°/360° (360° Continuous Pan Rotation Option)
Tilt: 270°
3 Phase Motors
0–100% dimming
Variable strobe
Quick release omega clamps included
6 Button Touch Control Panel
Full Colour 180° Reversible LCD Menu Display
IP65 Power Locking In/Thru
Seetronic 5-pin XLR Locking DMX In/Thru
Fan cooled

Protégé XS
