Hi-lights Online Store » ADJ UBL12HB Battery Batten

Key Features

Battery powered linear LED wash fixture; up to 20 hours battery operation
Features twelve ultra-bright 20 watt HEX LEDs (RGBAL+UV)
Wireless DMX built in, standalone, or remote control

Available to buy

Price (inc VAT)	£463.00

MPN:	1226200081

Weight:

4.8 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

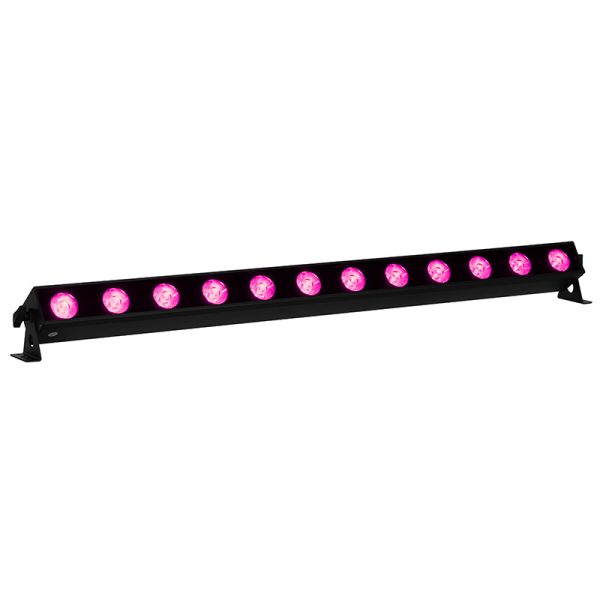

The ADJ UBL12HB redefines event lighting as a 1-meter, battery-powered linear LED wash luminaire. Designed for professional use, this lime-infused HEX LED fixture sets a new standard in performance. Powered by twelve ultra-bright 20 watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV), it is a versatile powerhouse that delivers seamless and precise color blending.

This fixture excels with its high CRI output and adjustable linear color temperature range from 2,300K to 9,900K. The inclusion of the lime chip enhances color accuracy, achieving a CRI exceeding 90 for an exceptional visual experience. It empowers lighting designers and event producers to create striking displays on walls, floors, and ceilings.

The UBL12HB features a 17° beam angle, an 85.5mm pixel pitch, and smooth RGBAL+UV color mixing. Its innovative Horizontal Magnetic Alignment ensures seamless color consistency across multiple fixtures. Control is intuitive with an OLED display and 4-button interface, supporting linear color temperature adjustment and compatibility with the ADJ UC-IR24 remote. The fixture offers seven DMX channel modes and five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. It is also RDM compatible.

With advanced features such as a 1.9kHz LED refresh rate, 64 built-in color macros, and selectable dimming modes and curves, the UBL12HB offers exceptional versatility. It supports DMX daisy-chaining for up to 17 units (120V) or 32 units (230V). Certified for safety and reliability, the UBL12HB is cETLus (pending), CE, and FCC compliant, with an IP20 rating.

The UBL12HB includes an indoor locking power cord, UC-IR24 remote, and a 20° diffusion filter. Expand its capabilities with the optional UBL912 linear diffusion lens kit (sold separately), which broadens the beam angle to 1×40 degrees. Whether mounted on the ground or truss with the included brackets, the UBL12HB delivers innovation and versatility for unforgettable lighting displays.

Features

Light Source:

12 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
Long Life LEDs (Rated at approximately 50,000 hrs.)
17° beam angle
CRI >90
Pixel Pitch: 85.5mm

Features:

Linear Colour Temperature Control (2,300K to 9,900K)
Smooth RGBAL+UV colour mixing
Horizontal Magnetic Alignment feature (Built-In)
Aria X2 Management System
Includes UC-IR24 remote (Operates at a distance of up to 32.8 feet / 10 meters)
RDM and RDM Net Ready

Control:

Linear Colour Temperature Control (2,300K to 9,900K)
OLED Display with 4-buttons
7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, & 46 Channels
6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36, 43 & 46 channel modes
5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
LED Refresh Rate: 1.9KHz
64 built-in Colour Macros
6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
Built-In Microphone for sound trigger
LED pulse and strobe effect
Electronic Dimming: 0-100

Connections:

Linkable: DMX via 5-pin XLR cable
Indoor Locking power In/Out to daisy chain power

Electrical:

Multi-voltage operation: AC 100V-240V 50/60Hz
Power Draw: 61W
Daisy-chain power link: Up to 17 UBL12H’s can be linked @120V and up to 32 UBL12H’s can be linked @230V

Battery:

Rechargeable Lithium ion
Battery Capacity: 7,000mAh
Battery Voltage: 22.2V
Charge Time, AC Power: 5 Hours (To Full)
Charge Time, Flight Case: 5 Hours (To Full)
Up to 20 Hour Battery Operation
Battery Cycles: 500

Dimensions / Weight:

Dimensions (LxWxH): 1082×86.9×107.1mm
Weight: 4.8 kg

Certifications / IP Rating:

IP20

Environment:

Operational Temperature Range: -20°C to 45°C
Storage Temperature: -20°C to 45°C

What’s Included:

(1) Indoor Locking Power Cord
(1) UC-IR24
(1) 20° Diffusion Filter
Includes pair mounting brackets to set on the ground or to mount a clamp to for truss mount

Optional Accessories:

(1) 1×40° Linear Diffusion Lens (SKU: UBL912)
