Hi-lights Online Store » ADJ Vintage Bar

Key Features

Powerful strobe with retro RGBL background effect
4x high power amber LEDs with 120x RGBL LEDs
Creates stunning multi-color eye candy effects

4 available

Price (inc VAT)	£739.00

MPN:	1226100439

Size:

0.908m x 0.292m x 0.257m (LxWxH)

Weight:

19 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

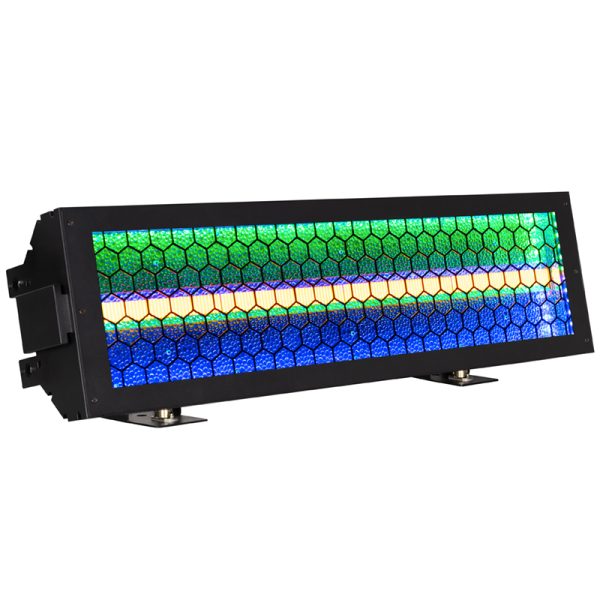

The ADJ Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2000K) for a retro blinder effect, combined with vibrant 120 SMD 5050 RGBL background LEDs configured into 20 pixel groups. This combination enables brilliant amber wash lighting, stunning multi-colour eye candy effects and smooth dimming transitions.

Its wide field angle of 160° ensures exceptional light dispersion, making it ideal for stage productions, events, theatrical applications. The fixture features advanced strobing, retro background effects, and silent operation. Additional highlights include flicker-free performance, a user-friendly OLED display, and support for DMX, RDM, and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.

Built for flexibility, the Vintage Bar offers multiple control modes, pixel mapping, and interlocking capability, making it perfect for immersive lighting setups. With robust engineering and creative potential, it combines vintage charm with modern functionality for modern lighting designs.

Features

Primary Light Source:

4 pcs high-power 150W COB Amber LED
CCT: 2000K
Lumens: > 27,000
Lux: 647 @ 5 meters
CRI: 70
Field Angle: 160°

Secondary Light Source

120 pcs SMD 5050 RGBL LEDs (0.8W each)
Configured into 20 pixel groups (6 LEDs per group)

Special Effects

Powerful strobe, 0.5 to 33Hz
Unique retro RGBL background effect
Silent operation with low noise

Additional Features

Aria X2 Management System
Flicker-free
OLED display with a 4-button touch menu
Capable of interlocking multiple units together
Dimmer: 0-100% linear dimming system

Control Modes

Primary/Secondary synchronization
Stand-alone mode
DMX512 control mode
10 DMX Channel Modes (5/6/8/14/17/18/84/88/90/97 channels)
DMX, RDM, and Art-NET protocol support

Connections

IP20 indoor 5-pin DMX Input and Thru
IP20 indoor RJ45 Ethernet
IP65 outdoor power locking Input and Thru

Dimensions & Weight

Dimensions (LxWxH): 908x292x257mm
Weight: 19 kg

Power

Input: AC 230V/50Hz-60Hz
Power Consumption: 750W @ 230V
Power Link: 2 pieces @ 230V
