Key Features

Ideal old & new eye candy and backlighting effects
4 Foreground Amber LEDs & 64 RGB LEDs
All LEDs are individually controllable via DMX

4 available

Price (inc VAT)	£504.00

MPN:	1226100440

Size:

0.39m x 0.39m x 0.19m (LxWxH)

Weight:

8.2 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

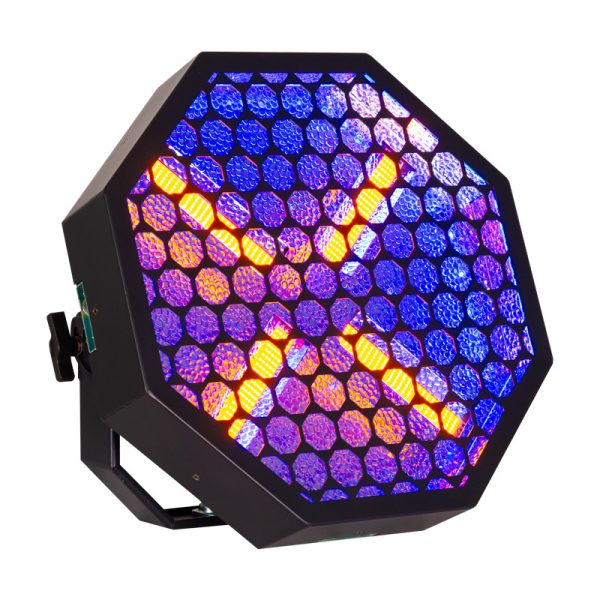

The ADJ Vintage X is a highly adaptable scenic lighting fixture that sparks creativity and captures attention with its dual-purpose design. Featuring four 60-watt foreground amber LEDs (2000K), it emulates the warm glow of tungsten for a retro blinder effect, while 64 vibrant 3-watt RGB LEDs deliver rich, dynamic colour tones and stunning effects. This combination allows for smooth dimming transitions and bold, captivating lighting displays in an intriguing octagon shaped fixture.

With its wide 150-degree field angle, the Vintage X ensures excellent light coverage, making it perfect for stage productions, live events, and theatrical applications. Additional features include advanced strobing effects, retro background lighting, and silent operation, while its flicker-free performance guarantees smooth visuals. The fixture also boasts a user-friendly OLED display and compatibility with DMX, RDM, Bluetooth, and Aria X2.

Designed for flexibility, the Vintage X supports multiple control modes, and interlocking, making it ideal for immersive lighting environments. Combining classic vintage aesthetics with cutting-edge technology, it offers both creative versatility and reliable performance for modern lighting designs.

Features

Source
- (4) 60W, 2000K, Amber Foreground LEDs
- (64) 3W RGB Background LEDs
- 50,000 Hour Average Life
Optical
- Amber: 2000K (+/- 50K)
- RGB: 2,700K ~ 10,000K White Colour Temperature Range
- Output: 220 Lux, 7000 to 8000 Lumens
- 140°Beam Angle
- 150°Field Angle
Features
- 4 Foreground Amber LEDs
- 64 Background RGB LEDs
- All LEDs are Individually Controllable via DMX
- Built-In Foreground LED Programs
- Built-In Background LED Programs
- Variable White Colour Temperature Control (2,700K ~ 10,000K) (RGB LED)
- User Selectable LED Refresh Rates (900Hz ~ 25K)
- 6 User Selectable Dim Modes
- 4 User Selectable Dim Curves
- Electronic Strobe (0.1Hz ~ 20Hz)
- Electronic Dimming
Physical
- IP20, Metal Housing
- Safety Eyelet
- Digital Display
- Coffin Lock System to Interlock up to 8 Vintage X units
- Adjustable Hanging Bracket
- Omega Clamp Receivers (Omega Clamp Sold Separately)
Control
- DMX512
- Aria X2 Wireless Management / DMX System
- Bluetooth
- RDM and RDM Net Compatible
- (9) DMX Channel Modes (8, 13, 22, 39, 43, 196, 200, 208 & 211 Channel modes)
- On-board Manual Control Mode
- Primary / Secondary Mode
Connections
- 5-pin XLR DMX In/Out Sockets
- IP65 Locking Power In & Thru Sockets
Dimensions & Weight
- Length: 398.4mm Width: 398.4mm Height: 194mm
- Weight: 8.2 kg
Power
- 240V/50Hz-60Hz Input
- 200W Power Consumption
- Link 4 pieces @ 230VAC
Thermal
- Ambient Operational Temperature: -20°C to 45°C
- Storage Temperature: -30°C to 45°C
Certifications & IP Rating
- IP20
Included Accessories
- (1) IP65 Locking Power Cable
Product Code
- 1226100440
User Manual
- ADJ Vintage X User Manual
