| Price (inc VAT) | £1,980.00 | ||
| MPN: | 990-00008 |
| Weight: | 5.1 kg |
| Delivery Charges |
|
Item Details

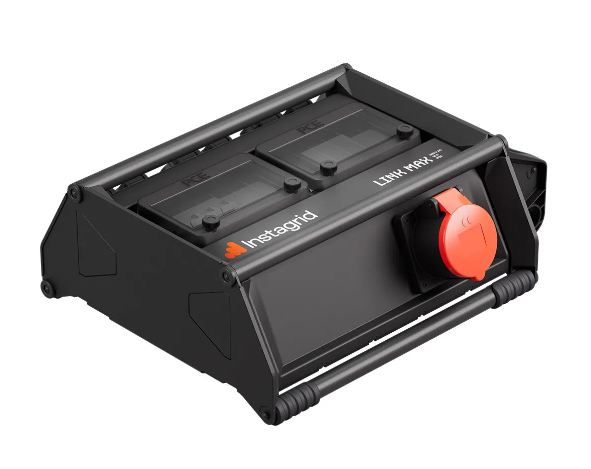

The Instagrid LINK MAX transforms three Instagrid ONE units into a high-performance 400 volt, 3-phase power supply, delivering an impressive 11kW rated output and up to 54kW peak power. Designed for professionals in events, film, live production, and mobile infrastructure, LINK MAX unlocks applications previously limited to industrial diesel generators — now in a silent, portable format. See the Instagrid LINK MAX video below for more information.
Weighing just 5.1kg, the LINK MAX unit can be carried by hand and paired with three Instagrid ONE units to create the world’s most compact and convenient 3-phase power system (total weight: 65kg). It features a plug-and-play design, tool-free setup, and rugged IP54 construction — eliminating the need for noisy engines, cables, or heavy lifting.
Run chain hoists, 400V coffee machines, or entire truss systems with confidence, without the safety risks of extension leads or voltage drops.
Features
- Combines 3 Instagrid ONE units into 400V / 3-phase / 16A output
- 11,000W rated output | 54,000W peak output
- Powers 400V tools such as hoists, kitchen appliances, and lighting rigs
- Compact & carryable: LINK MAX weighs just 5.1kg
- Set up anywhere – zero emissions, zero noise
- Advanced protection with built-in IMD, PMD, and MCB
- Up to 66% lower total cost of ownership vs. 12kVA generator
- Smart safety & connectivity:

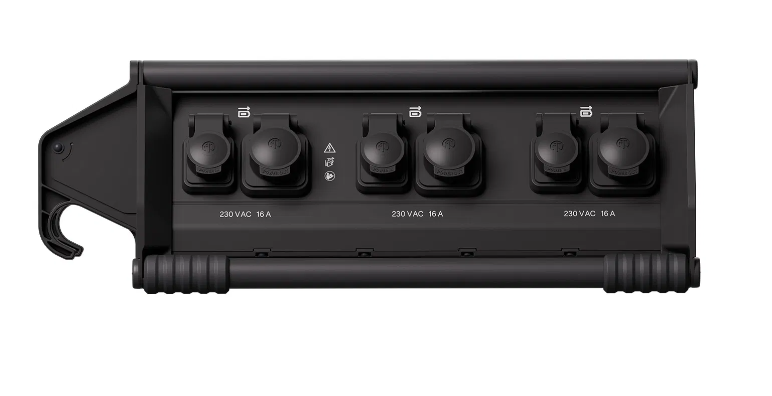

- 3x dual Neutrik TRUE1 inputs for correct connection
- 1x CEE 400V / 16A output
- Optional use of Instagrid ONE’s 230V outputs simultaneously
- Insulation and phase monitoring devices for extra safety
- Nominal Output Voltage: 400V AC
- Frequency: 50Hz
- Rated Output Current: 16A
- Rated Output Power: 11,000W
- Peak Power: 54,000W
- Output Receptacle: 1x CEE 5-pole 6h 400V / 16A

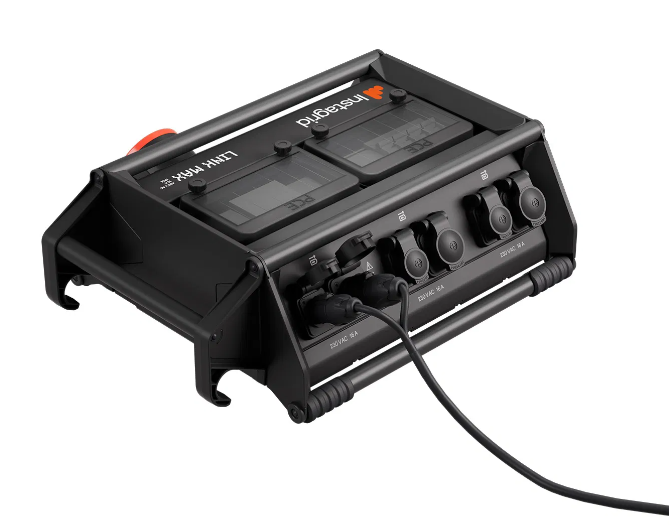

- Input Receptacles: 3x Neutrik powerCON TRUE1 TOP® dual input
- Output Type: 400V / 3-phase, plus optional 230V via ONE
- Protection Devices: MCB, IMD, PMD
- Circuit Breaker: 1x 4-pole C16
- Weight: 5.1kg
- Dimensions (L x W x H): 391 x 320 x 140mm
- IP Rating: IP54
- Protection Class: Class I with Class II construction
- Operating Temperature: –20°C to +60°C
- Delivery Scope: LINK MAX + 3x dual Neutrik cables
