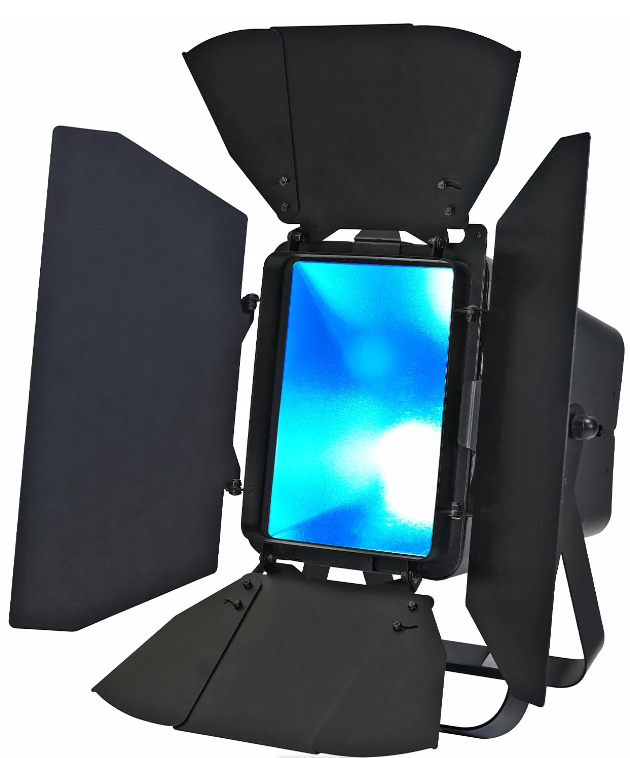

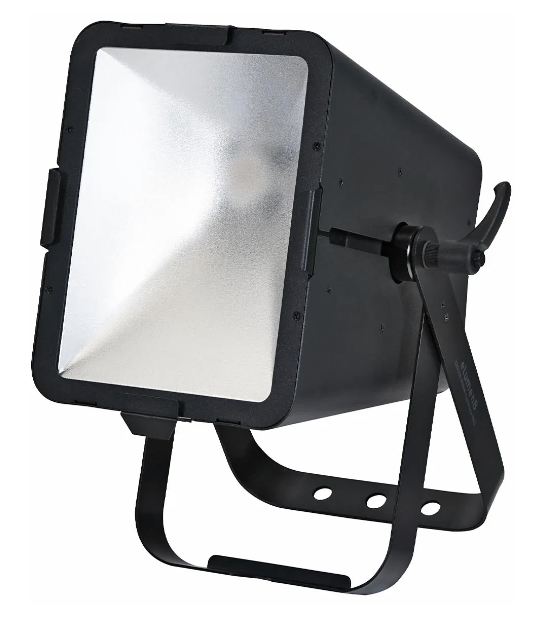

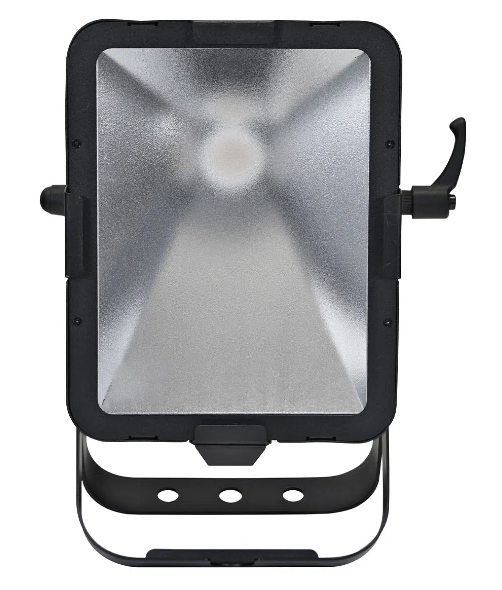

LEDJ Libretto RGBAL Cyclorama Wash

Item Details

The Libretto RGBAL Cyclorama Wash is a compact, five-colour LED cyc wash fixture suitable for theatre, studio or stage lighting. The wide angle, 90° x 105° beam is designed to deliver rich, even tones across large areas while the COB LED technology ensures a perfect colour mix without any multicoloured shadows. The LEDJ Libretto RGBAL Cyclorama Wash can be operated in a number of mounting position, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. Always use a safety wire as an extra safety precaution to prevent damage/injury in the event a clamp fails (see the next page for clamp installation).

Features

• 1 x 200W five-colour COB LED (RGBAL)
• Beam angle: 90° x 105°
• 1,147 Lux @ 2m (full on)
• CRI: 92
• Refresh rate: 900Hz, 1kHz, 1.2kHz, 1.5kHz, 2.5kHz, 4kHz, 5kHz, 10kHz, 15kHz or 20kHz selectable
• Colour temperature: 2800K-10000K
• DMX channels: 5/9 or 14 selectable
• Auto, static colour and manual modes
• 0-100% dimming
• 4 dimming curves with two dimming response times: Linear, square law, inverse square law and S-curve
• Variable strobe
• Bracket allows for multiple rigging or floor standing applications
• 4 button menu with OLED display
• PowerTwist TR1 input/output
• 5-Pin XLR input/output
• Eight leaf barn doors with integral gel frame
• Temperature controlled fan
• Power consumption: 208W
• Power supply: 100~240V, 50/60Hz
• Fuse: T3.15A 250V
• Dimensions (H x W x D): 315 x 272 x 280mm
• Weight: 5.9kg
• Product Code: LEDJ604
• Please note: Fitting clamp to lighting bars or truss is not included. Never use the carry handles for secondary attachments.

In The Box

• 1x fixture
• 1x barn door
• 1x power cable
• 1x LEDJ604 Libretto RGBAL Cyclorama Wash Fixture Manual
