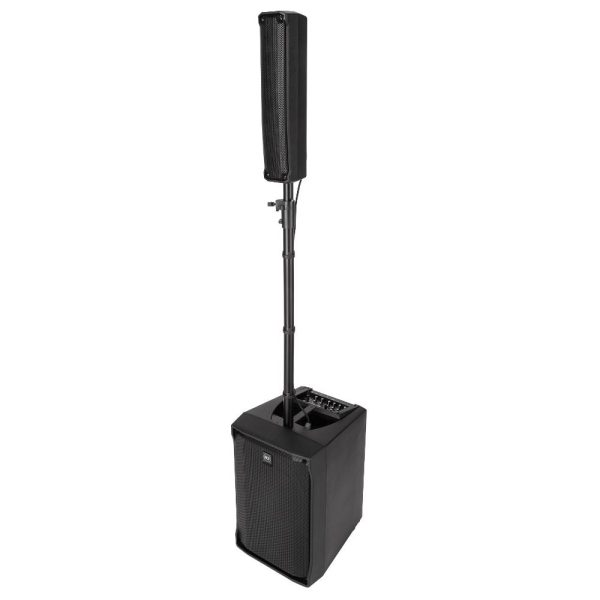

The RCF EVOX JMIX8 is a portable active sound system (made of a satellite plus a subwoofer) that combines quality and reliability of RCF transducers with high amplification power. It features eight 2.0” full range transducers in the line source satellite and a deep sounding 12” woofer in a bass reflex enclosure.

Taking the EVOX J8 one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions it includes high-quality instrument FX and AMP simulations. An EVOX iOS/ Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input, the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer. The system is an optimal portable solutions for live music, DJ mix-sets and also presentations, congresses, other events, etc.

EVOX DSP processing is the result of many years of experience in line array design combined with innovative and dedicated algorithms. Thanks to the frequency dependent drivers excursion and control of distortion, EVOX DSP processing is capable to guarantee a high output from these small systems. A dedicated vocal processing has been specifically studied for speech reproduction during presentations or conferences.

EVOX JMIX8 includes high technology RCF transducers. The ultra-compact full-range 2” driver can handle extremely high sound pressure levels and power. The high excursion woofers are able to extend to the lowest frequencies and offer a quick and precise response up to the crossover point. Specific attention has been dedicated to mid-low frequencies as well.

EVOX array design features a constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row. The top steel plate joins the handle and the insert for pole mounting. A rubber hand grip has been added for great portability.

EVOX J8 includes a high power two-way class D amplifier with DSP controlled crossover.

Pair the with EVOX JMIX8 with the RCF Evox J8 Active Two Way Array for a complete portable PA system.

Features

• 128 dB Max SPL
• 1400 Watt 2-way power
• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• DSP Processing with FiRPHASE
• 12″ woofer, high power 2.5″ voice coil
• 8 x 2″ ultra compact fullrange 1.0″ voice coil
• 2350x350x450 mm 92.5×13.77×17.71 in (HxWxD)
• RCF Evox JMIX8 User Manual
