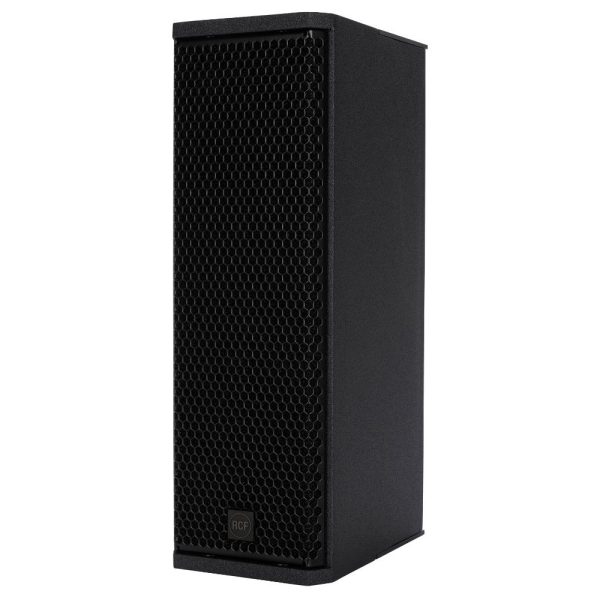

Hi-lights Online Store » RCF KX 515-A 2000w 2 Way Point Source Active Speaker

Key Features

A 2000 watt speaker that can fit in your palm
100° X 70° rotatable constant-directivity waveguide
Pair with the SUB 808-AS subwoofer to extend the low-frequency range

Available to buy

Price (inc VAT)	£1,699.00

MPN:

13000952

Weight:

9.8 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

This item may be dispatched from RCF Italy; please allow additional delivery time. Need it quickly? Check availability using the contact button below.

Enquire about this item

Item Details

Flexibility, power, and compactness make the RCF KX 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of RCF technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, RCF KX 515-A is quick to deploy and fast to tune.

Pair the RCF KX 515-A with the SUB 808-AS subwoofer to extend the low-frequency range and create a powerful full-range main system with an incredibly small footprint. With multiple configuration options, the powerful DSP and RDNet remote management, there isn’t a too big or too small venue.

Two 5” cone drivers on a custom-designed phase plug to enhance midrange efficiency and extend horizontal coverage, matching the waveguide dispersion for perfect coverage continuity around the crossover point. The high-performance 1.75″ titanium dome compression driver is fitted on a 100° x 70° rotatable constant-directivity waveguide. This special waveguide and high-frequency transducer design allow excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.

Use the RCF KX 515-A as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength baltic birch plywood coated with black, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Features
