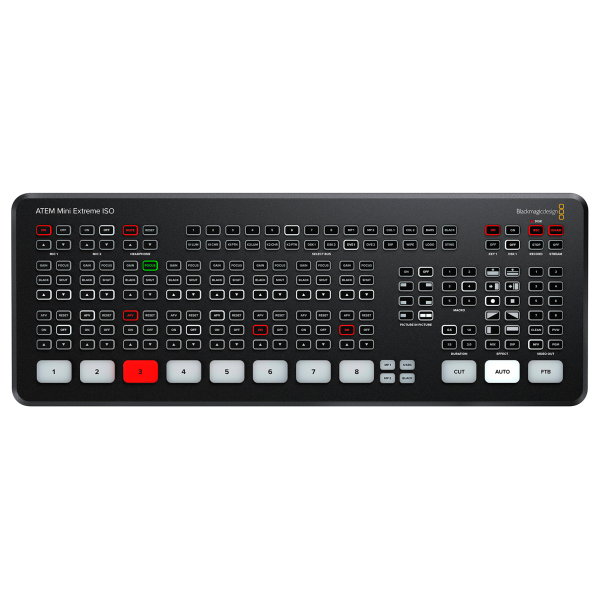

Hire the Blackmagic Atem Mini Extreme ISO Vision Mixer & Switcher nationwide from Hi-Lights.
| Weekly Hire Price | £180.00 exc VAT |
| MPN: | ATEM Mini Extreme ISO |
Rental Product Description
The Blackmagic Atem Mini Extreme ISO Vision Mixer & Switcher includes the features of ATEM Mini Extreme, plus also records 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved allowing the project to be recreated and edited later.
Features
Connections
- Total video inputs: 8
- Total outputs: 4
- Total aux outputs: 2
- Total audio inputs: 2 x 3.5mm stereo mini jack
- Total audio outputs: 1 x 3.5mm stereo mini jack
- Timecode connection: none
- HDMI video inputs: 8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio
- Video input re-sync: on all 8 HDMI inputs
- Frame rate and format converters: on all 8 HDMI inputs
- HDMI program outputs: 2
- Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection
- Computer interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection
Audio
- Audio mixer: 11 input x 2 channel mixer: selectable on/off/audio-follow-video per channel plus separate gain control per channel
- Level and peak metering, plus new Fairlight audio enhancements: compressor, gate, limiter, 6 bands of parametric EQ. Master gain control
- Analog input: unbalanced stereo
- Analog input delay: up to 8 frames
- Input impedance: 1.8k
- Max input level: +6dBV
- Mic plug-in power: available on both 3.5mm mini jack connections
Streaming
- Direct streaming: ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C
Recording
- Direct recording video and audio: USB-C 3.1 Gen 1 expansion port can record directly to external media
- Video recording: 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio
- Audio recording: 10 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs
- Switching: program switching recorded as a DaVinci Resolve project .drp file
- Media format: supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system
- Multi View Monitoring
- Multi view monitoring: Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters
- Multi view video standard: HD
Media Player
- Media players: 2
- Channels: fill and key for each media player
- Media pool still image capacity: 20 with fill and key
- Media pool still image format: PNG, TGA, BMP, GIF, JPEG and TIFF
