Rental Product Description

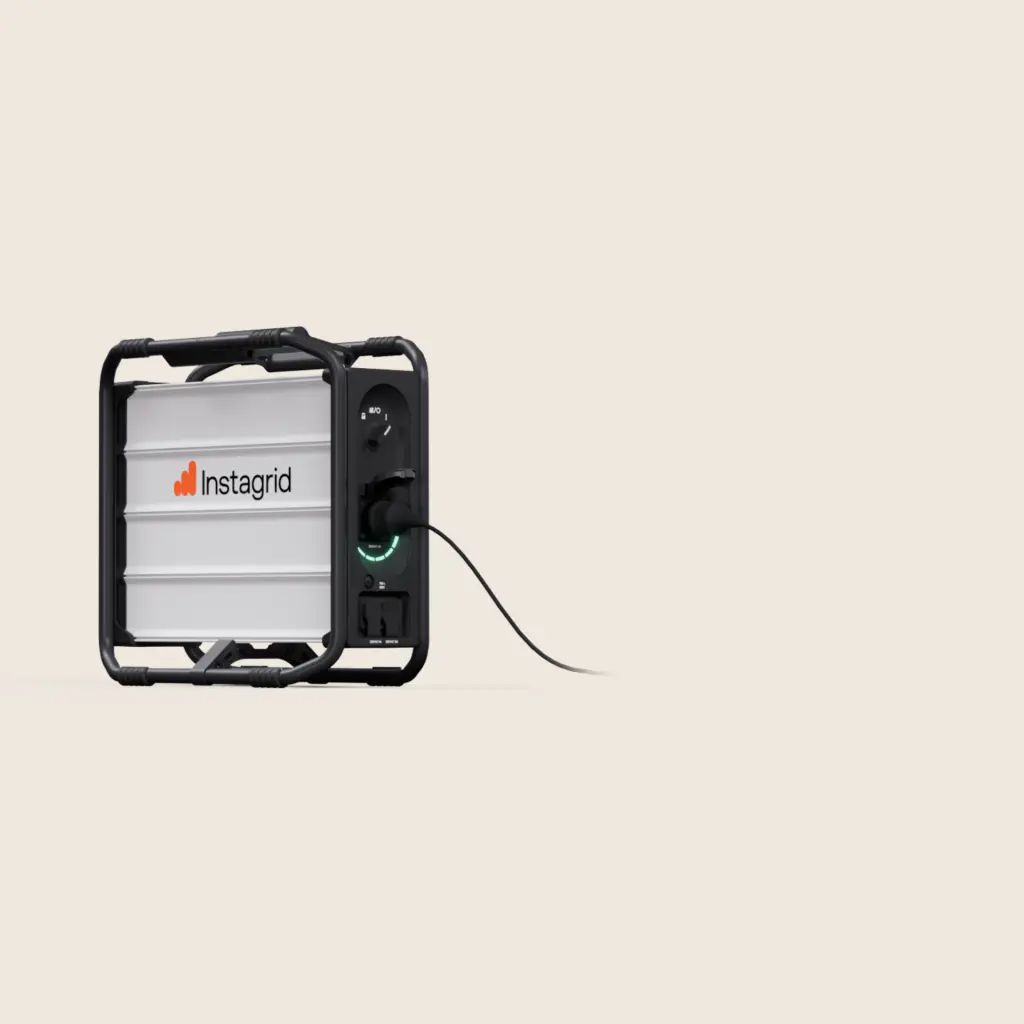

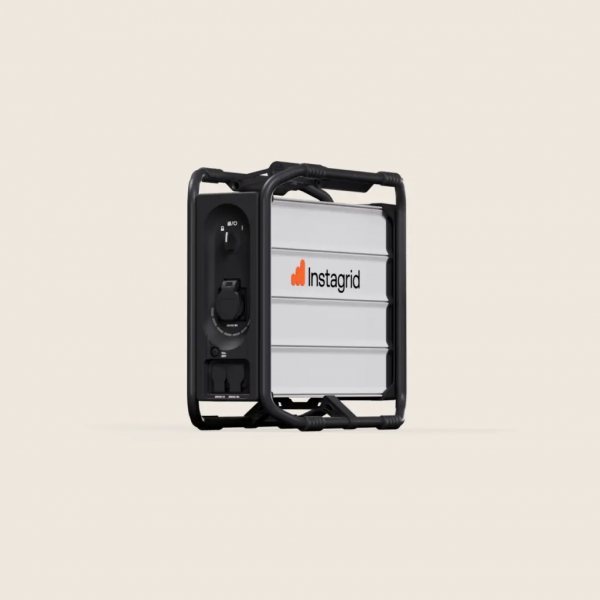

New to hire stock, the Instagrid ONE is a powerful, portable 230 volt AC battery system designed to deliver solid, grid-like electrical performance for professionals. Whether you need to run lights, a sound system, or stage power, the Instagrid ONE lets you plade power anywhere.

Weighing only 20kg, this compact battery power pack replaces bulky generators with clean, silent, and instant power. Its rugged IP54-rated design ensures reliable performance indoors or out, across all weather conditions and environments. The fanless, zero-emissions system is whisper-quiet and recharges in under 2.5 hours from a standard 230V socket, making it ideal for film, events, construction, and remote locations. We also sell the Instagrid ONE Battery Power Pack.

Whats so good about Instagrid ONE?

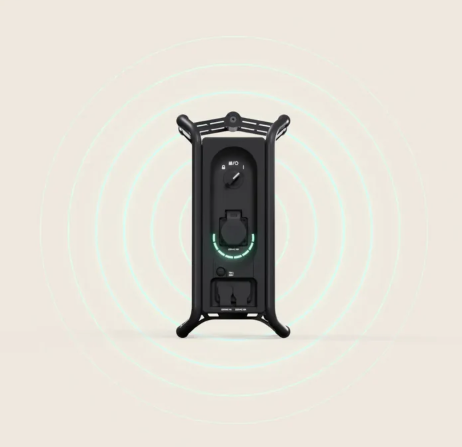

• Plug and Play: Professional power at the flick of a switch
• Grid-Like Power: Generates a pure AC sine wave
• Rated Power Output: 3.6 kW to power any device
• Peak Power Output: 18 kWp for seamless productivity
• Long runtime: 2.1 kWh to power your entire workday
• Truly portable: 20 kg for single-handed mobility
• No noise, no fumes: Fanless design and no exhaust emissions
• Work anywhere: Take a 230V wall socket with you – power any device no matter where you are
• Fast charging: Full charge in 3 hours. Charge Instagrid ONE in the middle of your workday
• Robust and weather-proof: IP54 rating. Work in any conditions, unaffected by dust or water.

Typical power run times

• LED Soft Light (420W): ~5 hours
• Camera Crane (1,800W, 30% usage): ~2–4 hours
• Coffee Machine (2.3kW): ~160 cups
• Cordless Drill (18V): Recharge 25+ times
• Walkie Talkie: Recharge 220+ times

Features

• High Power Output: 3,600 W rated output and up to 18,000 W peak power capacity for demanding electrical loads
• Ultra-Portable: Weighs just 20kg and features an integrated handle, allowing it to be carried in one hand
• Fast Recharge: Recharges from 0–100% in under 2.5 hours from a standard 230V AC socket
• Rugged & Weather-Resistant: IP54-rated for dust and splash resistance, ensuring reliable performance across all weather conditions and environments
• Silent & Zero-Emissions: Fanless design results in whisper-quiet operation (<30 dB(A)) with no fumes or fuel required
• Wide Operating Temperature: Functions reliably in temperatures from –20°C to +60°C (discharging)
• Dual Outputs: Includes 1 x BS 1363 (13A) and 1 x Neutrik PowerCON TRUE1 TOP® output sockets
• Overload Tolerance: Handles demanding loads with tolerance for 150% (5,400W) for up to 500 sec, 200% (7,200W) for up to 50 sec, and 250% (9,000W) for up to 10 sec
• Expandable Capacity: Works with Instagrid LINK and LINK MAX for expanded capacity
