Rental Product Description

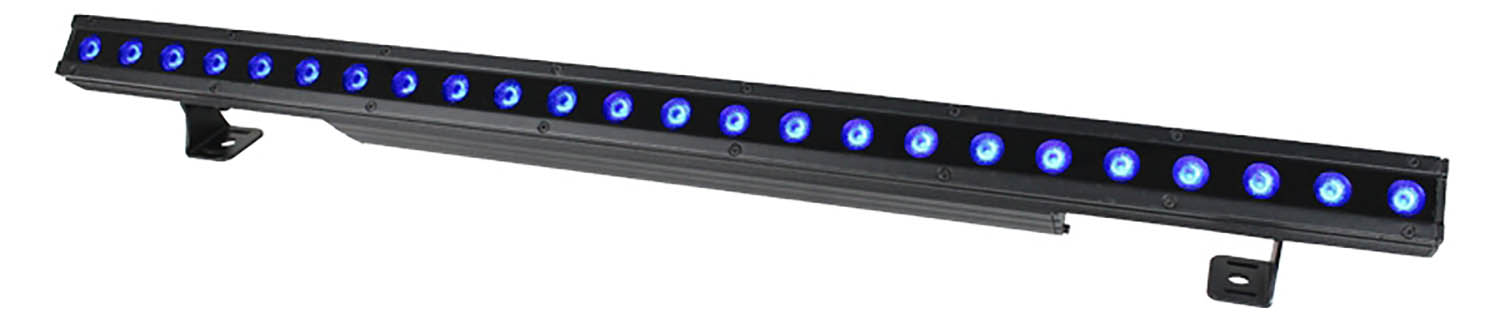

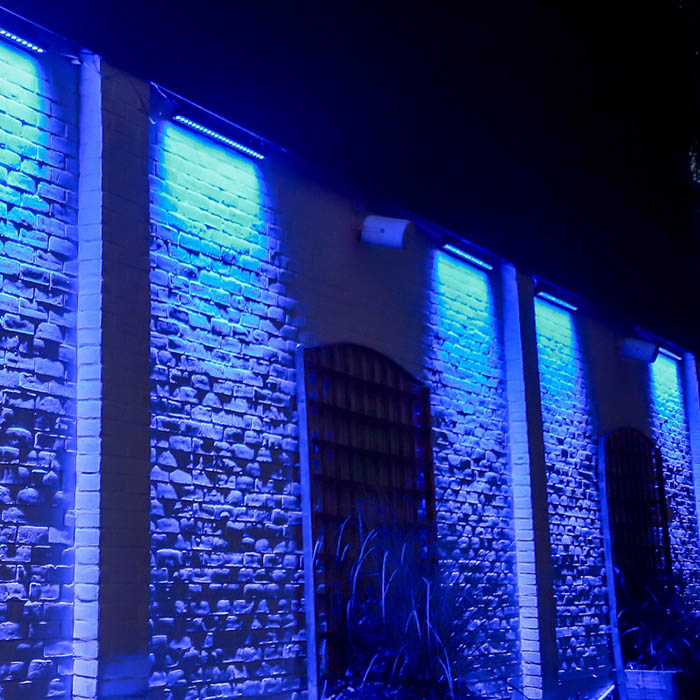

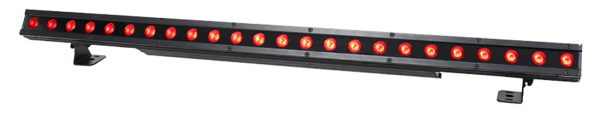

The LEDJ Fresco 24 RGBW Batten Fixture is a sleek IP65 batten, so its perfectly suited for wall washing and cyclorama applications both inside and outdoors. The 15° x 52° beam angle produces an unprecedented chromatic performance, whilst the 4 button backlit LCD display lets you set static colours, colour mixing and preset chases, whilst you cna also take full control using DMX.

The LEDJ Fresco 24 RGBW Batten Fixture can be floor mounted, or attached to lighting bars and truss, producing brilliant wall washes, or used facing the audience for added eye candy during a music gig, or as part of an entrance way for sports and presentations. For simple colours and built in effects, the LEDJ Fresco 24 Batten  can be paired with the SDC6 lighting desk (for manual control) or the Zero 88 FLX S24 Lighting Control Desk for more authentic control over all the attributes the fixture has to offer.

We supply the Fresco 24 in flight cases of six units.

Features

• 24 x 3W quad-colour LEDs (RGBW)
• Beam angle: 15° x 52°
• 2,150 Lux @ 2m (full on)
• Refresh rate: 1.1kHz
• DMX channels: 3/4/6/8/10/16 or 20 selectable
• RDM (Remote Device Management)
• Static colour, colour change, colour fade and master/slave modes
• 0 – 100% dimming
• Variable strobe

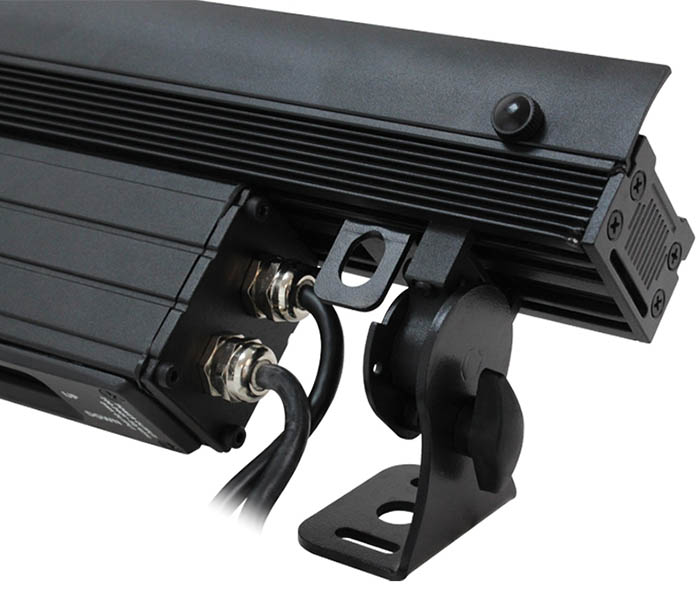

• Bracket allows for multiple rigging or floor standing applications
• Eyebrow supplied to reduce glare and hide the LEDs when uplighting
• 4 button menu with LCD display
• Hydralock power input/output trailing connections
• Hydralock DMX input/output trailing connections
• Convection cooled
• Power consumption: 108W
• Power supply: 240V, 50/60Hz
• Fuse: T1.5A 250V
• IP rating: IP65
• Dimensions (H x W x D): 120 x 960 x 50mm
• Weight: 5.2kg
