Hi-lights Online Store » ADJ Focus Profile

Key Features

Full CMY color mixing
Color Wheel with 6 dichroic colors
3 & 6 Facet Rotating Prisms

Out of stock

Price (inc VAT)	£3,881.00

MPN:	1237000313

Weight:

27.57 kg

Delivery Charges

Mainland UK (Free)
Scottish Highlands (Free)
Collect in person (Free)

Enquire about this item

Item Details

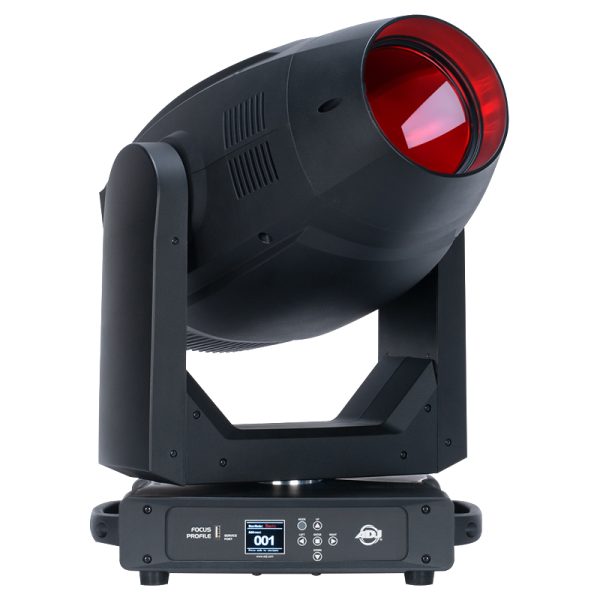

The ADJ Focus Profile is a feature-packed moving head profile fixture with framing shutters. It features a potent 400W LED engine, 4 rotating framing shutters, full CMY colour mixing and two prism effects.

The brightest and most feature-rich Focus Series fixture to date, the Focus Profile is a professional caliber automated profile luminaire designed for theatrical, concert touring and event production applications. It features a potent 400W LED engine, with a native colour temperature of 6,700K and a CRI in excess of 70, coupled with an exhaustive collection of beam-shaping tools. These include four, independently controllable, rotating full blackout framing shutter blades, which can be used to precisely shape the light output. The unit offers full CMY colour mixing together with variable CTO colour temperature control (2700K to 6700K) and an additional colour wheel loaded with 6 dichroic filters comprised of four primaries together with CTB and CRI filters. Two separate GOBO wheels feature 7 replaceable, indexed-rotating GOBOs, and 8 static GOBOs, respectively, while two bi-directional rotating prisms (3-facet and 6-facet) allow for the creation of a wide variety of aerial effects. Motorized focus, iris and zoom (7 – 45-degrees) together with a replaceable (medium) frost filter and an animation wheel complete the lineup of features offered by this powerful and versatile luminaire.

Features

Source

400W LED Engine
20,000 Hour Average LED Life
Variable Refresh Rate: 900Hz-1500Hz,2500Hz,4000Hz,5000Hz,6000Hz,10KHz,15KHz,20KHz,25KHz
20,990 Total Lumens, 6,700K
70CRI without CRI filter
88 CRI with CRI filter
44,330 LUX / 4,118 FC @5m (7.32° Beam)
1,767 LUX / 164 FC @5m (45° Beam)

Optics

Beam Angle: 7~45°
3 & 6 Facet Rotating Prisms
Replaceable Medium Frost Filter (heavy frost filter included)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)

Control

Pan 540/630°, Tilt 270°
3 DMX Channel Modes (36 / 40 / 51)
RDM (Remote Device Management)
Battery inside, allowing to access the fixture Menu without power connection
6 Button Touch Control Panel
Full Colour 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

Colour

Full CMY colour mixing
Variable CTO
Colour Wheel with 6 dichroic colours

Gobos

2 Gobo Wheels
Gobo wheel 1:7 Interchangeable Rotating-Indexing Gobos
Gobo wheel 2: 8 Static-Stamped Gobos

Effects

4 Full blackout Framing Shutters with rotating system (-60° ~ +60°) and 2 motors per blade
Animation wheel

Construction

Housing: High-impact flame-retardant thermoplastic
Colour: Black
Protection rating: IP20
Pan/Tilt Locks

Electrical / Thermal

AC 100-240V – 50/60Hz
Max Power Consumption: 560W
Max ambient temperature: -25°C to 45°C
Max housing temperature: 58°C

Connections

3 & 5 pin XLR DMX In/Out
RJ45 Ethernet In/Out (Art-NET + sACN)
IP65 Locking Power In/Out
USB port for firmware updates

Dimensions & Weight

Length: 651mm
Width: 400mm
Vertical Height: 260mm
Weight: 27.75kg

Noise level

DB Rating @ 1m: 36,7 dB(A)

Manufacturer Info

ADJ

Hi-Lights uses a range of ADJ products in its rental stock, as well as being a manufacturer of choice in venue installations, so we’re confident in the range of ADJ luminaires.

ADJ is a highly respected global manufacturer in the production of entertainment lighting, LED video, and atmospheric effects equipment, with over 35 years of experience in the industry.

Founded in 1985, they are known for exceptional customer support, high-quality products, and innovation inclusding the latest IP65 outdoor rated fixtures.

ADJ’s product portfolio includes moving head luminaires, static washes, beam effects, audience blinders, strobes, DMX control hardware/software, LED video panels, and related accessories, as well as fog, haze and other atmospheric effect generators. The entire ADJ range is ideal for both rental and installation markets, including live events, productions, and festivals of all sizes.

ADJ’s products are installed and used in a wide variety of venues, ranging from large outdoor events, churches, theaters, and event centers to wedding rooms and hotel ballrooms, nightclubs and lounges, and concert venues.
