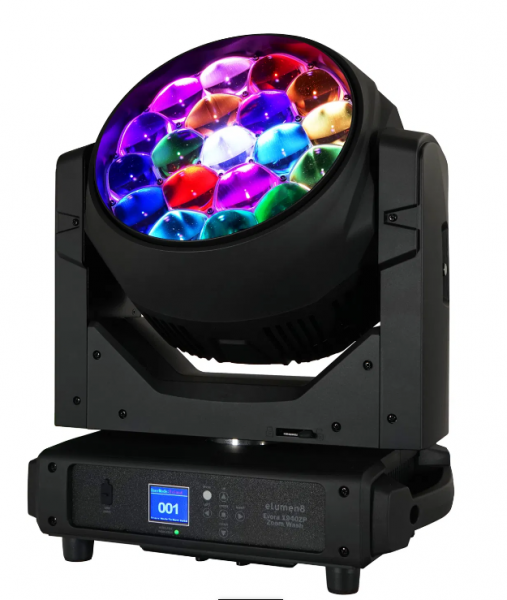

Elumen8 Evora 1940ZP Zoom Wash Moving Head Fixture

Item Details

The Eluemen8 Evora 1940ZP LED Zoom Wash produces an incredible high output from a sleek and durable chassis, making it a truly versatile yet affordable solution for both rental and installation applications. The first-class optical system presents a high intensity adjustable zoom; the narrow 4 degree beam angle creates sharp mid-air effects, whilst the wider angles produce uniform colour mixing, bathing concerts and events in rich colours. Full pixel control over the 19 x 40W Osram Ostar™ quad-colour LEDs gives lighting designers a further level of creativity, whilst colour calibration ensures colour consistency from batch to batch.

Features

• 2 year warranty
• 19 x 40W Osram Ostar™ quad-colour LEDs (RGBW)
• Adjustable beam angle: 4°- 50°
• Lumens – Source: 19,874
• Lumens – Output: 12,214
• 4° – 124,972 Lux @ 2m (full on), 50° – 8,876 Lux @ 2m (full on)
• CRI: 78
• Refresh rate: 14 selectable presets between 900Hz-25kHz
• Motorised zoom
• Full pixel mapping capabilities
• Control protocols: DMX, Kling-net, Art-net and sACN
• DMX channels: 11/17/25 or 101 selectable
• Wireless control (W-DMX Sweden transceiver)
• Can be used to receive wireless DMX and relay the DMX signal via the XLR output
• Features integral Art-Net to DMX for control of DMX fixtures downstream on the same universe
• Manual control and master/slave modes
• Built-in colour macros and patterns
• Colour temperature presets
• Pan/tilt transit lock and auto correction
• 16-Bit pan/tilt positioning
• Pan: 540° or 630° selectable, Tilt: 250°
• 0 – 100% dimming
• 5 dimming modes: Standard, stage, TV, architectural and theatre
• Variable strobe
• powerCON TRUE1, 5-Pin XLR and etherCON inputs/outputs
• RDM (Remote Device Management)
• 6 button menu with 1.8” LCD display
• Display battery backup for offline configuration
• Quick release omega clamps included
• USB port (firmware updates)
• Temperature controlled fan
• Power consumption: 935W
• Power supply: 100~240V 50/60Hz
• Fuse: T12A 250V
• Noise level: 45.2dBA @ 1m (low speed), 49.9dBA @ 1m (auto speed), 53dBA @ 1m (high speed)
• Dimensions (H x W x D): 465 x 400 x 295mm
• Weight: 19kg
