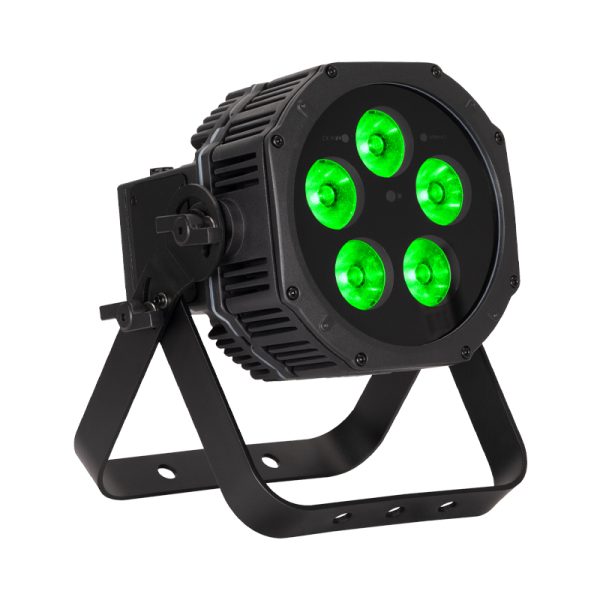

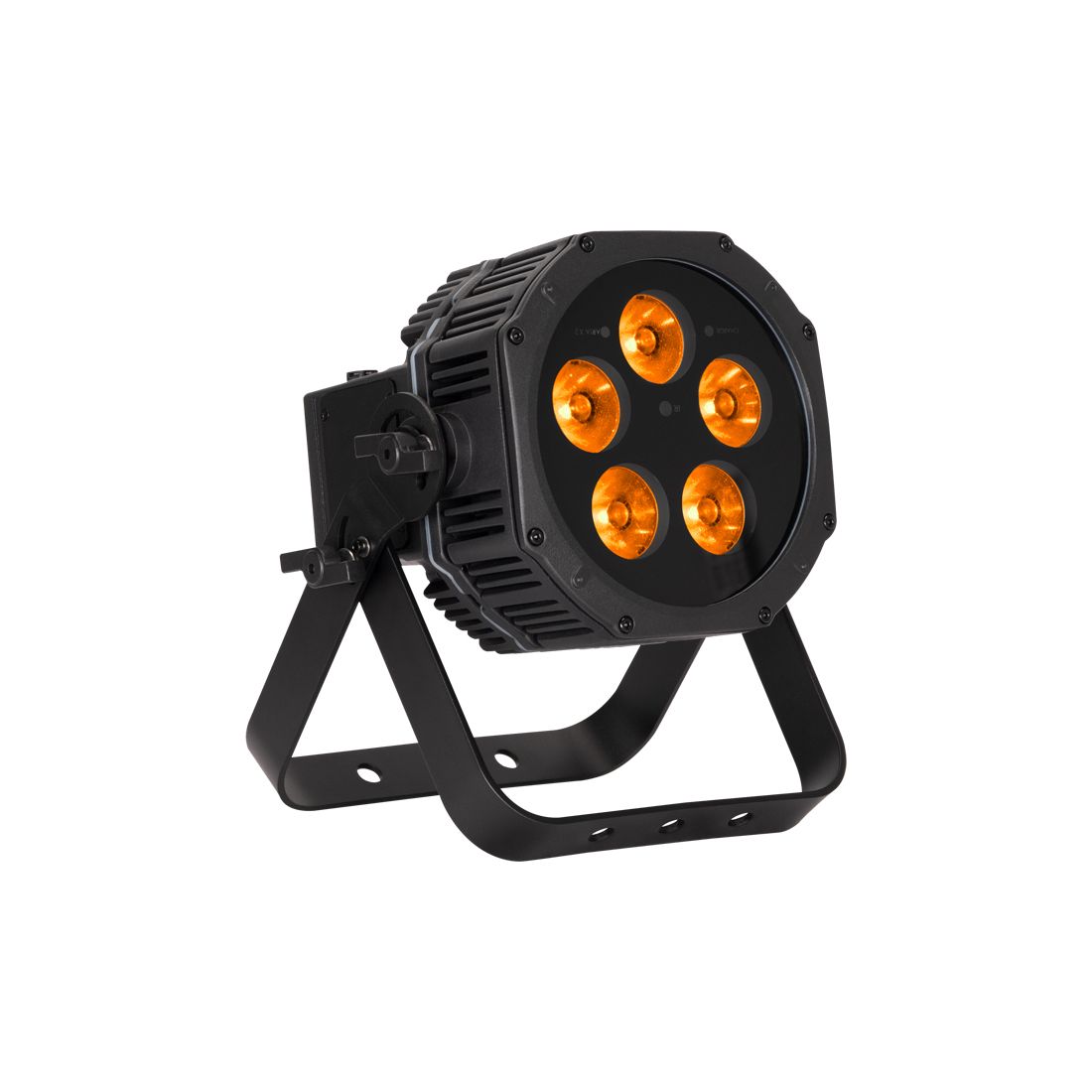

The Mirage Par H IP LED fixture is a versatile, high-performance lighting solution, perfect for events, installations, and stage productions. Equipped with five 20W Hex Color RGBAL+UV LEDs, it delivers a dynamic range of color, including lime and UV for unique lighting effects. With an adjustable white color temperature from 2,300K to 9,900K, the Mirage Par H IP allows access to massive gamut of colors.

This light can be powered via wall outlet or its rechargeable lithium-ion battery, providing user selected 5 to 20 hours of operation. Control options are expansive, including DMX512, Aria X2 wireless system for over the air firmware/software updates, Bluetooth, RDM and an IR remote. With a robust IP65-rated housing, it is weather-resistant, making it ideal for outdoor or indoor use.

Advanced features include variable refresh rates (900Hz to 25K), six dimming modes, four dimming curves, built-in programs, and electronic strobing and full dimming, giving users complete control over intensity and effects.

The Mirage Par H IP is both compact and rugged, ensuring easy setup, striking and transport. This versatile LED Par is designed for lighting professionals who need reliability, color versatility, adaptable power options and all-weather protection in one durable package.

• 5 Pixel, Hex Colour LED (RGBAL+UV) LED Par
• Battery or Wall Powered
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours
• Built-In Programs

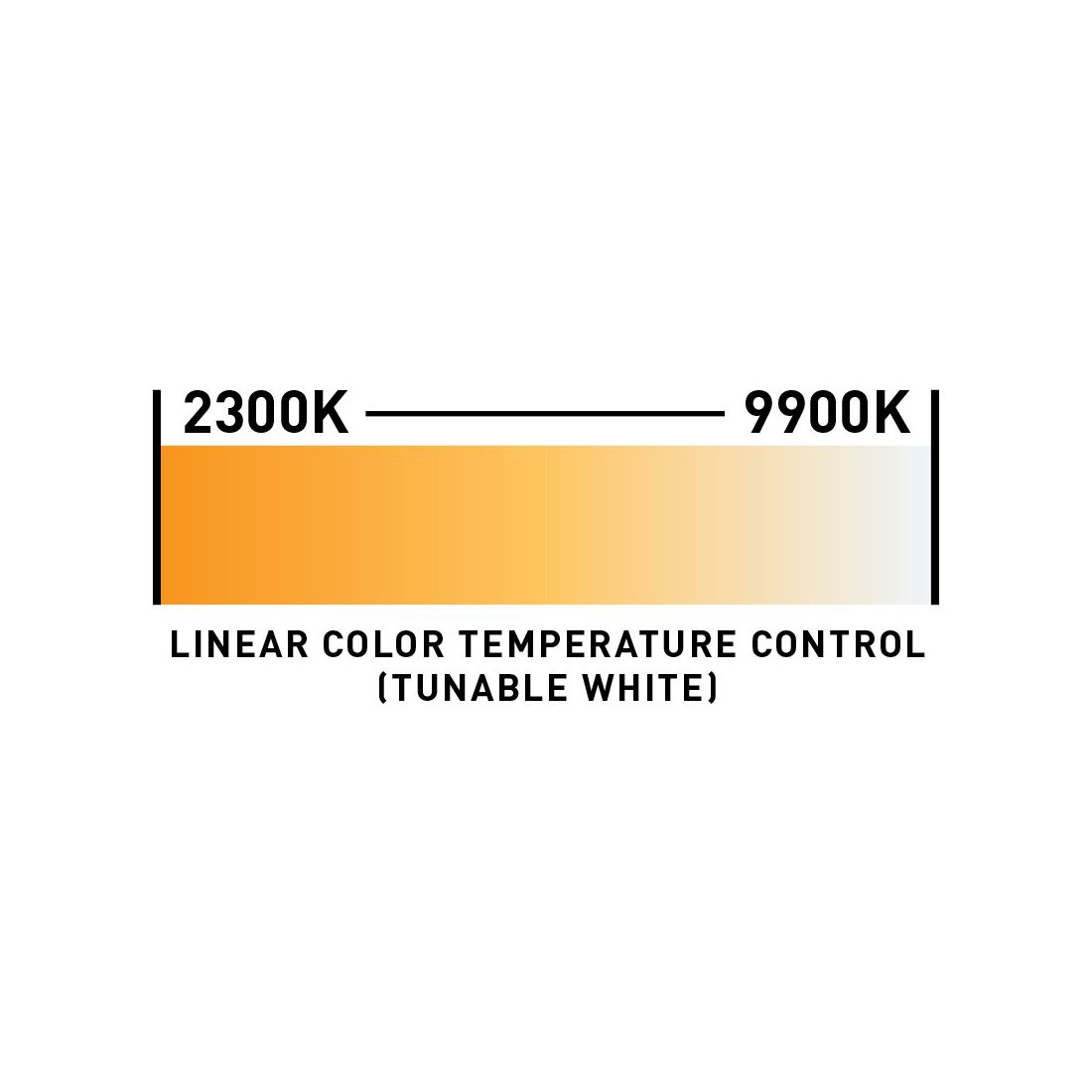

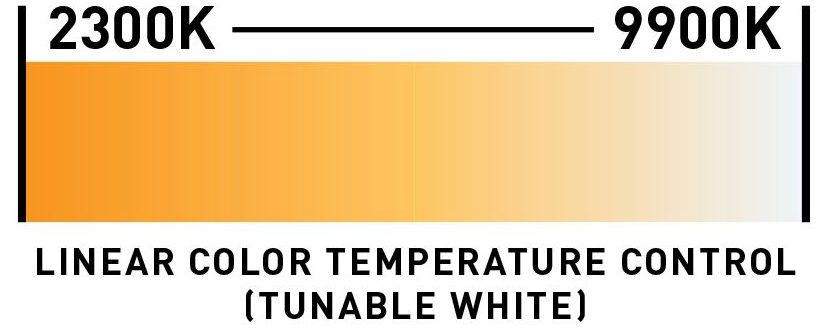

• Variable White Colour Temperature Control (2,300K ~ 9,900K)
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

• (5) 20W Hex Colour RGBAL+UV LED’s
• 50,000 Hour Average Life*

• 2,300K ~ 9,900K White Colour Temperature Range
• 17° Beam Angle

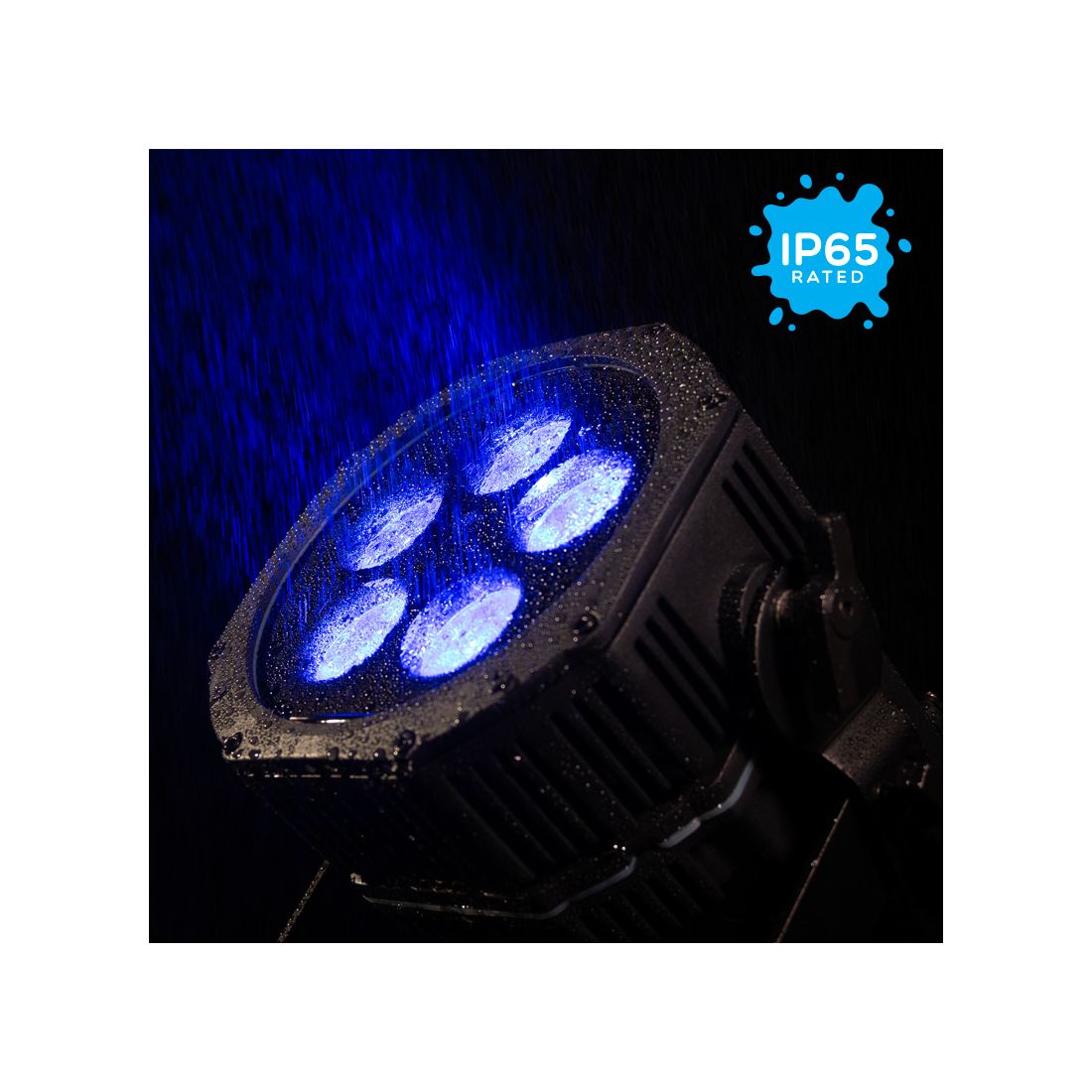

• IP65 Housing

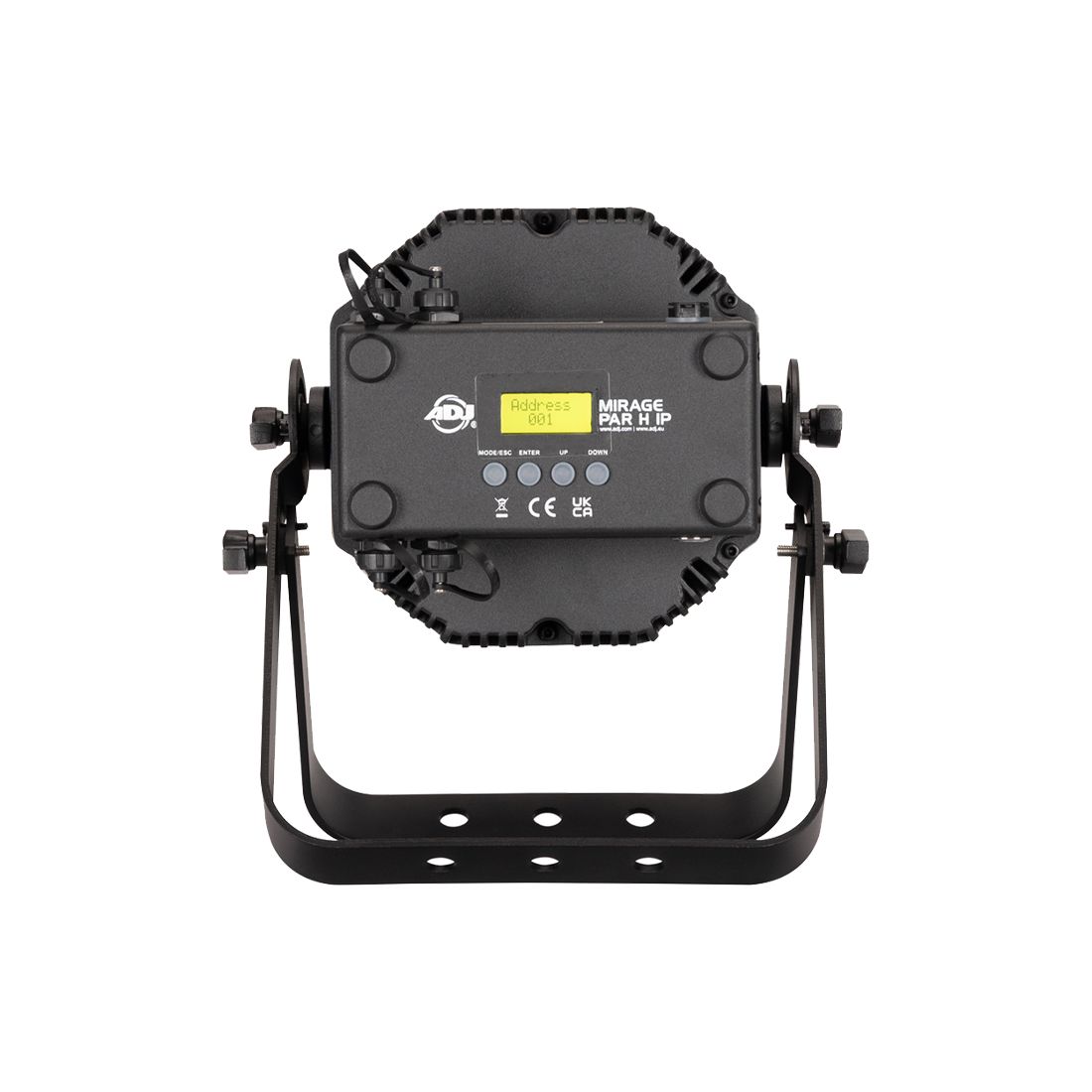

• Digital display

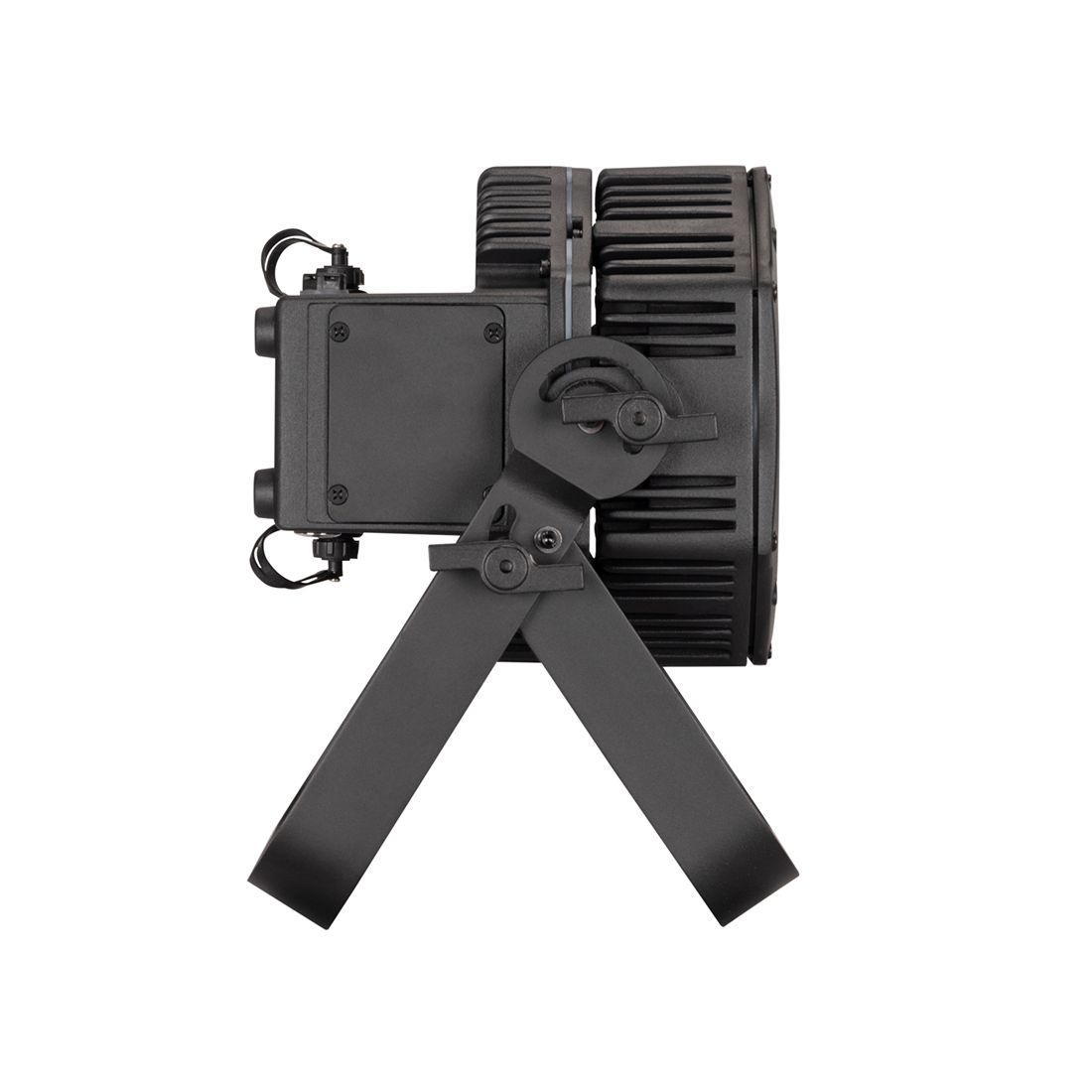

• Adjustable, hanging / kick stand bracket

• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (6) DMX Channel Modes (5, 6, 9A, 9B, 15 & 17 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

• 4-pin proprietary Power In/Out connections
• 3-pin proprietary IP65 DMX In/Out connections

• Dimensions (LxWxH): 282mm x 269mm x 191mm
• Weight: 5.4 kg

• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 28 pieces @ 230VAC

• Rechargeable Lithium ion
• Battery Capacity: 6,600mAh
• Battery Voltage: 22.2V
• Charge Time: 5 Hours (To Full)
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
• Battery Cycles: 500

• Ambient Operational Temperature: -20°C to 45°C
• Storage Temperature: -30°C to 45°C

• IP65

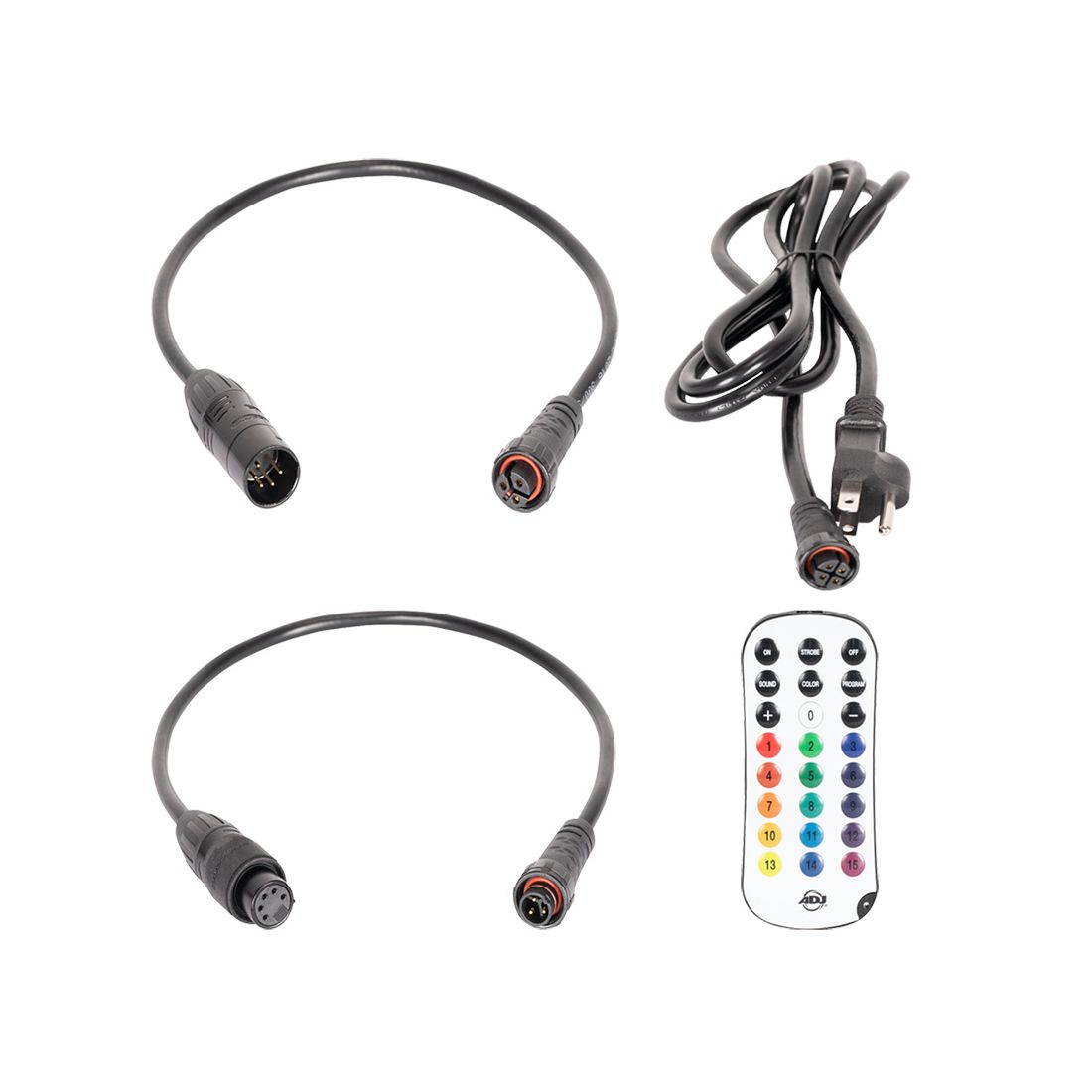

• (1) Outdoor Locking Power Cable
• (1) Floor / Mounting Bracket
• (1) UCIR24 Remote
• (1) 5 Pin DMX Adapter (male)
• (1) 5 pin DMX Adapter (female)

User Manual:

• ADJ Mirage Par H IP User Manual
