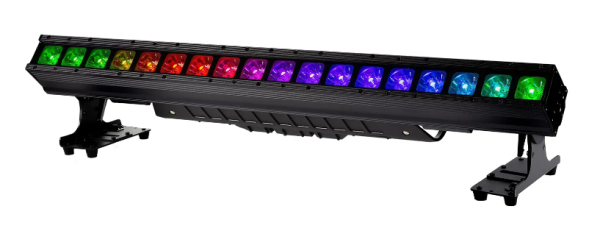

Elumen8 Mira 450 IP Pixel Batten Fixture

Item Details

The Elumen8 Mira 450 IP Pixel Batten is a high-output, IP65-rated fixture designed for the most demanding of environments. Housing 18 x 25W RGBL quad-colour LEDs, it delivers an intense 6° beam, with optional 20°, 45°, and 60° lenses available for broader wash coverage. The batten supports full pixel mapping and is controllable via DMX, Art-Net, or sACN with selectable refresh rates up to 24kHz for flicker-free performance on camera. Built for touring and fixed installs alike, the Mira 450 features fully rotatable 4-position mounting brackets for floor-standing or truss rigging, and includes quick-release omega clamps for fast setup. Units can be seamlessly joined side-by-side or stacked vertically using the built-in tool-free link system, allowing for uninterrupted linear or grid-style arrays. With convection cooling and rugged IP-rated connectors, the Mira 450 is the ideal choice for outdoor shows, stage productions, and architectural lighting.

Features

• 2 year warranty
• 18 x 25W RGBL quad-colour LEDs
• Native 6° beam angle
• Optional 20°, 45° and 60° diffusion lenses available
• Selectable refresh rates: 800Hz, 1.2kHz, 2kHz, 4kHz, 6kHz, 8kHz, 16kHz, 24kHz
• Full pixel mapping capabilities
• Control: DMX, Art-Net and sACN
• DMX channels: 4/7/9/20/75/79 selectable
• Integral Art-Net to DMX for downstream fixture control
• Static colour, colour temperature and manual modes
• Built-in colour macros and programs
• Colour temperature presets
• 0 – 100% dimming
• 4 dimming curves: Linear, Square Law, Inverse Square Law, S-Curve
• Variable strobe
• RDM (Remote Device Management)
• 4 button menu with LCD display
• Adjustable 4-position brackets, rotatable at 90° intervals
• Quick release omega clamps included for fast rigging
• Tool-free seamless joining side-by-side or vertically stacked
• PowerTwist TR1 input/output
• IP-rated 5-Pin XLR input/output
• Fanless convection cooling
• Power consumption: 510W
• Power supply: 100~240V, 50/60Hz
• Fuse: T10A 250V
• IP rating: IP65
• Dimensions: 230 x 970 x 94mm
• Weight: 11kg
