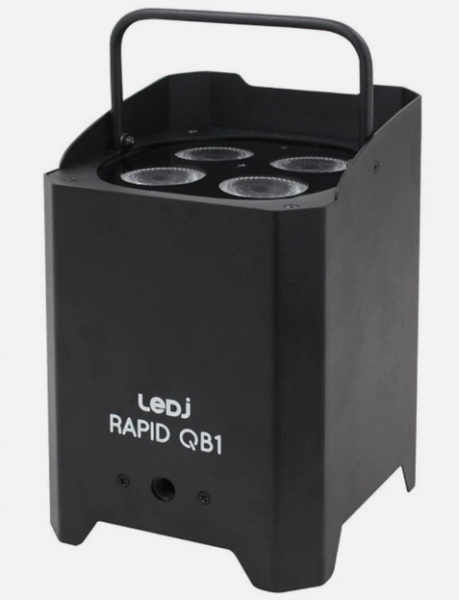

LEDJ Rapid QB1 RGBA IP Battery Uplighter (Black)

Item Details

The LEDJ Rapid QB1 RGBA IP Battery Uplighter in black is a portable battery powered uplighter outputting ultra-smooth colours from rich saturated hues to subtle pastel shades. The temporary outdoor rated compact and robust housing repels water, snow and dirt for all-weather applications and is easily concealable. The internal lithium battery has autonomy of up to 18 hours in single colour mode and up to 8 hours of colour fading and chases, while the charging time is only 5 hours. The fixture is IP54 rated (IP65 from the top), has a powerCON TRUE1 input and features an extractable foot that allows users to adjust the tilt angle. The on-board wireless transceiver and W-DMX compatibility make for a truly cable free operation.

Features

• 4 x 8W quad-colour LEDs (RGBA)
• Beam angle: 15° (field angle: 29°)
• 1,551 Lux @ 2m
• Refresh rate: 1.2kHz
• DMX channels: 4/6 or 10 selectable
• Wireless control (W-DMX Sweden compatible transceiver)
• Static colour, colour change, colour fade, auto and master/slave modes
• 0 – 100% dimming
• Variable strobe
• M10 rigging point for clamp
• Adjustable foot support for angled floor standing applications (up to 25°)
• Carry handle for transportation
• Safety bond/security chain point
• 4 button menu with OLED display
• Rechargeable battery for wireless applications
• Maximum run time: up to 18 hours (single colour), 8 hours (colour change/fade), 4 hours (full on)
• Charging time: 5 hours (max.)
• powerCON TRUE1 input
• Convection cooled
• Supplied with IR remote
• Power consumption: 45W
• Power supply: 100~240V, 50/60Hz
• Fuse: F3.15A 250V
• Battery: 14.8V 5200mAh
• Battery fuse: F5A 250V
• IP rating: IP54 (IP65 from the top)
• Dimensions (H x W x D): 204 x 138 x 144mm
• Weight: 3kg
• Product Code: LEDJ353

Rapid QB1 RGBA IP Battery Uplighter User Manual
