Item Details

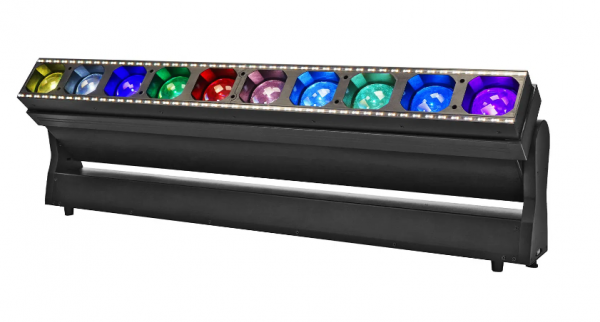

The Elumen8 Meteor 1060 Zoom Batten is a high-output moving batten which features ten 60 watt RGBW LEDs, allowing full pixel mapping capabilities, as well as 96x 1 watt tri colour, 96x 2 watt warm white and 96x 2 watt cool white LEDs to create added effects. The Elumen8 Meteor 1060 Zoom Batten features high quality optics to ensure a smooth light output across the batten through a broad pallet of pastel and saturated colours. It features multiple operating modes which create unique effects including beams, washes, and strobe.

The Elumen8 Meteor 1060 Zoom Batten fixture also offers pre-programmed macros and patterns and features a motorized zoom with a beam angle of 3° to 41°. There are two connection locations for the included omega clamps to accept most hardware, and a tool-less connection system allows side-by-side connection. PowerTwist TR1, 5-Pin DMX and Ethernet inputs and outputs to allow for a problem-free, rental-ready connection.

Features

• 2 year warranty
• 10x 60 watt quad-colour LEDs (RGBW)
• 96x 1 watt tri-colour SMD 5050 LEDs (RGB), 96x 2 watt cool white SMD 5050 LEDs (CW) plus 96x 2W watt warm white SMD 5050 LEDs (WW)
• Adjustable beam angle: 3°- 41°
• Lumens – Source: 25,450
• Lumens – Output: 23,500
• 3° – 109,375 Lux @ 2m (full on), 41° – 10,125 Lux @ 2m (full on)
• CRI: 78
• Refresh rate: 15 selectable presets between 900Hz-25kHz
• Motorised zoom
• Full pixel mapping capabilities
• Control protocols: DMX, Art-net and sACN
• DMX channels: 17/27/99/108 or 168 selectable
• Manual control mode
• Built-in colour macros and patterns
• Colour temperature presets
• Tilt auto correction
• 16-Bit tilt positioning
• Tilt: 200°
• 0 – 100% dimming
• 4 dimming curves: Linear, square law, inverse square law and S-curve
• Variable strobe
• Quick release omega clamps included
• RDM (Remote Device Management)
• 4 button menu with 1.8” TFT display
• Display battery backup for offline configuration
• PowerTwist TR1, 5-Pin XLR and Ethernet inputs/outputs
• Temperature controlled fans
• Power consumption: 1090W
• Power supply: 100~240V, 50/60Hz
• Fuse: T10A 250V
• Dimensions (H x W x D): 291 x 1002 x 115mm
• Weight: 18.7kg

In The Box

• 1x ELUM059 Elumen8 Meteor 1060 Zoom Batten Fixture
• 2x Omega Clamp
• 1x power cable
• 1x ELUM059 Meteor 1060 Zoom Batten Instruction Manual
